UV Sensors

UV Sensors

Application:  -

Market Type:  After Market

Product Attribute:

Applicationt:

-

Production Description:

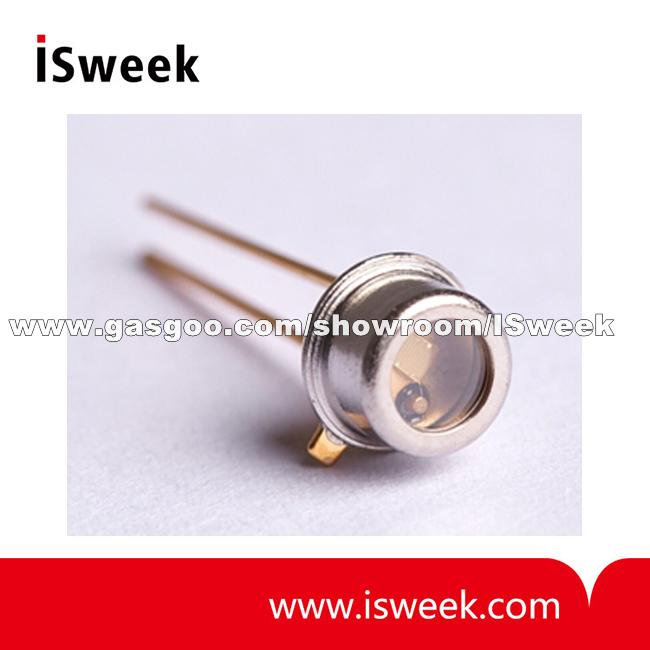

1. UV SensorsGT-ABC-MProduct info
Chip size 0.22 mm2, TO46 metal package with sapphire window, high sensitivity and low leakage, good visible blindness, spectral response range 210-370 nm.

2. UV SensorsGT-ABC-MTypical applications
UV lamp monitoring, UV water quality monitoring, UV spectrometer for medical applications

3. UV SensorsGT-ABC-MGeneral Features

  •  Broad band UVA+UVB+UVC photodiode
  •  Photovoltaic mode operation
  •  TO-46 metal housing
  •  Good visible blindness
  •  High responsivity and low dark current

4. UV SensorsGT-ABC-MSpecifications
Parameters Symbol Value Unit
Maximum ratings
Operation temperature range   Topt -25-85
Storage temperature range   Tsto -40-85
Soldering temperature (3 s) Tsol 260
Reverse voltage    Vr-max -10 V
General characteristics (25)
Chip size A 0.22 mm2
Dark current (Vr = -1 V)   Id <1 nA
Temperature coefficient   Tc -0.02 %/
Capacitance (at 0 V and 1 MHz) Cp 18 pF
Spectral response characteristics (25)
Wavelength of peak responsivisity   p 355 nm
Peak responsivisity (at 355 nm)    Rmax 0.20 A/W
Spectral response range (R=0.1×Rmax)   210-370 nm
UV-visible rejection ratio (Rmax/R400 nm)   >104

5. UV SensorsGT-ABC-MPackage dimensions




UV Sensors
