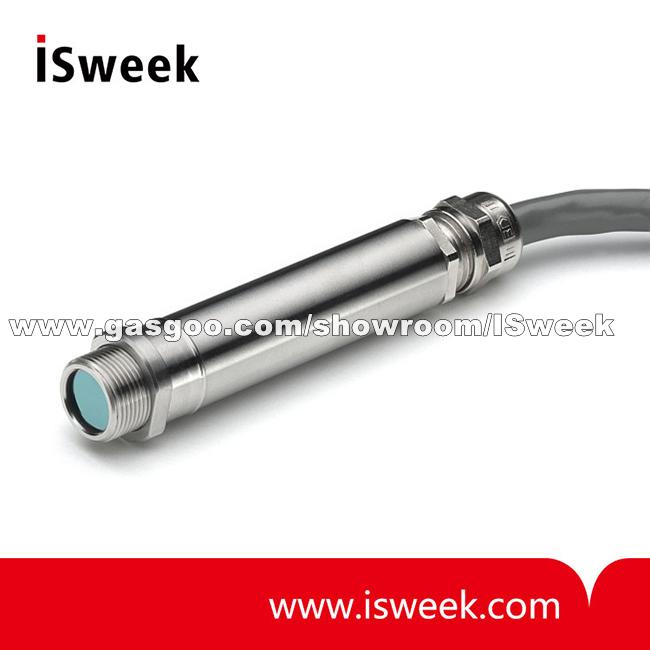

Infrared Temperature Sensors PyroCouple, PyroEpsilon

Infrared Temperature Sensors PyroCouple, PyroEpsilon

Application:  \

Market Type:  After Market

Product Attribute:

Applicationt:

\

Production Description:

PyroCouple, PyroEpsilon, PyroBus, PyroCAN
General Purpose Infrared Temperature Sensors

General Purpose Infrared Temperature Sensors Features

  • Temperature range: -20°C to 500°C
  • Choice of precision optics for large or small targets at short or long distances
  • Fast response with high stability
  • Stainless steel housing, sealed to IP65
  • Quick and easy installation
  • Wide range of accessories


General Purpose Infrared Temperature Sensors Description
The Calex Compact Series is a range of high quality, low cost non-contact sensors that measure the temperature of inaccessible or moving objects and materials. They measure temperatures from -20°C to 500°C, accurately and consistently, with an outstanding response time of 240 ms. All models conform to industrial EMC standards.
The PyroCouple is a simple infrared temperature sensor with a choice of analogue outputs. No complicated setup is required - just connect a temperature indicator and power supply, and instantly start taking measurements.


Temperature ranges from -20°C to 500°C
Suitable  for  non-contact temperature  measurement on most non-reflective non-metal surfaces, such as paper, thick plastics, asphalt, painted surfaces, food, rubber and organic materials, among many others.
Choice of analogue outputs for measured temperature:
  Two-wire 4-20 mA,
  Four-wire 0-50 mV,
  Four-wire Type K, J or T thermocouple
Additional  sensor  body temperature output on four-wire models: indicates the air temperature around the sensor and helps prevent overheating or overcooling

The PyroEpsilon is a simple sensor with an adjustable emissivity setting. It is ideal if the target is partially reflective.
Temperature ranges from -20°C to 500°C
Two-wire 4-20 mA output
Emissivity adjustment via a separate two-wire 4-20 mA input
Adjust  the  emissivity continuously  during  the process using a variable 4-20 mA source
Set the emissivity manually with the PyroTune emissivity adjuster
If you are not sure the emissivity of the target is high, choose the PyroEpsilon instead of the PyroCouple.

The PyroBus is a networkable, fully configurable sensor with RS485 Modbus RTU communications.
Temperature ranges from -20°C to 500°C
Up to 247 sensors may be connected to a single network.

Infrared Temperature Sensors PyroCouple, PyroEpsilon
