NDIR CO2 Sensor Module For IAQ, Greenhouse, HVAC, DCV

NDIR CO2 Sensor Module For IAQ, Greenhouse, HVAC, DCV

Application:  \

Market Type:  After Market

Product Attribute:

Applicationt:

\

Production Description:

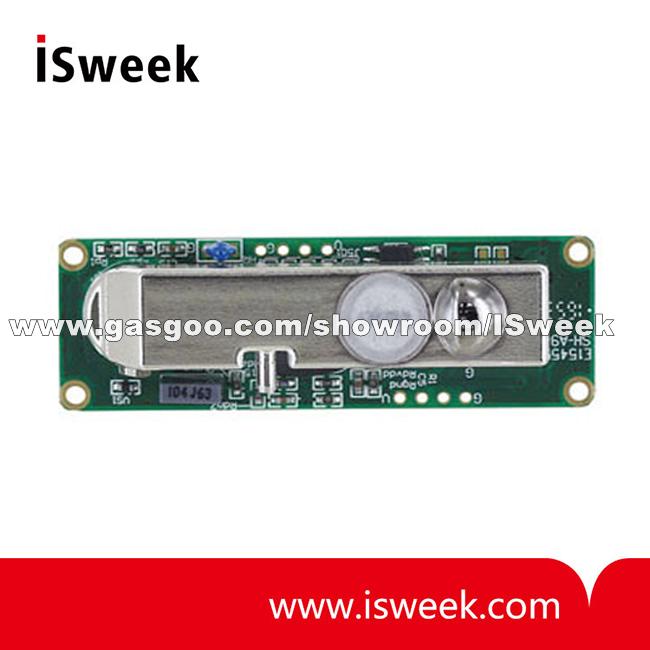

ZG Module - ZG07 series NDIR CO2 Sensor

Use Dual Beam NDIR technology to improve the long term stability
Cost - effective CO2 monitors made with IR-SOC technology
CO2+Temp.+RH (ZG07R)
Small Module for OEM

ZG07 series NDIR CO2 Sensor Module Application:
IAQ (Indoor air quality)
Greenhouse
HVAC.DCV (Demand Control Ventilation)


ZG07 series NDIR CO2 Sensor Module Specifications

Method - Dual Beam NDIR
Sample Method Diffusion or flow through (50~200ml/min)
Operating conditions 0~50°C  (32~122°F), 0-95% RH, non-condensing
Storage conditions -20~60°C (-4~140°F), 0-95% RH, non-condensing
Performance - CO2 Channel
  ZG07 ZG07-M ZG07R
CO2 range (ppm) 0-3,000 0-10,000 0-3,000
CO2 Accuracy ±50ppm or 5% of reading
Repeatibility ±20ppm
Resolution 1ppm
Pressure Dependence 0.13% of reading per mm Hg
Response Time About 2 min
Warm Up Time 30 sec. @ 25°C
Performance - Temperature and RH
  ZG07 ZG07-M ZG07R
Temperature Range 0~50°C  (32~122°F)
Temperature Accuracy ±1°C(±2°F) When the fan blows to the device directly, the accuracy of temperature is ±1.5 °C.
Relative Humidity
Range (RH%)		 N/A N/A 0-100%
Accuracy(Typ./Max.)
@25°C (20%~80% RH)		 N/A N/A ±3% / ±5%
Power Supply and Output
Power Supply 5.0 VDC ±0.5 supply, Ripple and Noise (mVp-p) 200
Max. current <180 mA
 Avg. current <30 mA(ZG07/ZG07-M), <17 mA(ZG07R)
Update period 5 sec.
Output Interface 4pin Vertical Connector, Space=2.54mm
Communication type SPIr
Dimension 62mm x 20mm x 13.0mm (ZG07/ZG07-M) , 62mm x 20mm x 16.0mm (ZG07R)

NDIR CO2 Sensor Module For IAQ, Greenhouse, HVAC, DCV
