Item |

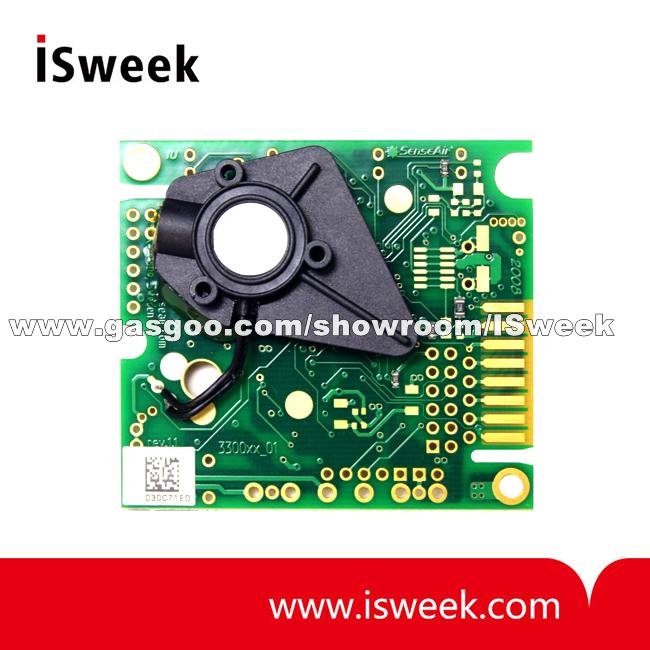

CO2 Engine BLG Art. no:. 033-9-0015 |
|
General performance |
|
Storage temperature range |
-40 to +70 °C |
|
Storage Environment |
Non condensing, non corrosive environment 1 |
|
Operating Temperature Range |
0 to 50 °C |
|
Operating Humidity Range |
0 to 95% RH (non-condensing) 2 |
|
Operating Environment |
Non corrosive environment 2 . Residential, commercial,
industrial spaces used in HVAC (Heating Ventilation and Air-
Conditioning) systems 3 |
|
Sensor Life Expectancy |
> 10 years |
|
Maintenance Interval |
Maintenance-free. See discussion of ABC algorithm on page 10 |
|
Self-Diagnostics |
complete function check of the sensor module |
|
Conformance with standards |
RoHS directive 2011/65/EU |
|
Electrical / Mechanical |
|
Power Input |
4.75-12 VDC 4 max rating, stabilized to within 10% powering
sensor via Vbat+
5.5-12 VDC 4 max rating, stabilized to within 10% powering
sensor via G+ (on board protection circuits) |
|
Current consumption |
~250A (1 measurement/hour)
~50A in sleep
~60 mA average during active measurement sequence (~12s)
< 150 mA peak current (averaged during IR lamp ON, 100 msec)
< 250 mA peak power (during IR lamp start-up, the first 50 msec)
for maximum operating time (if powered by batteries), choose
batteries that can deliver 250mA pulses without large voltage
drops (for example batteries recommended for cameras) |
|
Electrical connections |
Vbat+, G+ and G0 |
|
Dimensions (mm) |
51 x 57 x 14 mm (Length x Width x Height) (0..30%
measurement range) |
|
CO2 measurement |
|
Sensing Method |
non-dispersive infrared (NDIR) waveguide technology with ABC,
automatic background calibration algorithm (application specific) |
|
Sampling Method |
diffusion |
|
Response Time (T1/e) |
<25 sec gas diffusion time |
|
Measurement period |
5 min to 0.5 year interval, a measurement period less than 5
min can be used, but then specified accuracy on RH and
temperature measurements are not guaranteed |
|
Repeatability |
± 0,1 %vol. CO 2 ± 2 % of measured value |
|
Accuracy 5 |
± 0,2 %vol. CO 2 ± 3 % of measured value |
|
Pressure Dependence |
+ 1.6 % reading per kPa deviation from normal pressure, 100 kPa |
|
On-board calibration support |
Din1 switch input to trigger Background Calibration @ 400 ppm
(0.04%vol) CO2
Din2 switch input to trigger Zero Calibration @ 0 ppm CO2 |
|
Temperature Measurement |
|
Sensor |
SHT11 from Sensirion |
|
Measurement Range |
- 40 to 60°C |
|
Accuracy 6, 7 |
± 0.4°C at 25°C |
|
Relative Humidity Measurement |
|
Sensor |
SHT11 from Sensirion |
|
Measurement Range |
0 to 100% RH non condensing |
|
Accuracy 6, 7 |
± 3% RH |
|
Logger properties |
|
Logger Capacity |
5400 logging points if CO2 concentration, temperature and
relative humidity are logged (with timestamp) |
|
Logging Data |
Selectable, one data record can contain up to 14 bytes (max 4 variables) |
|
Logging Period |
(1255) * Measurement Period |
|
|
|
<t
