Relative Humidity And Temperature Sensor With I²C Interface

Product Attribute:

Applicationt:

\

Production Description:

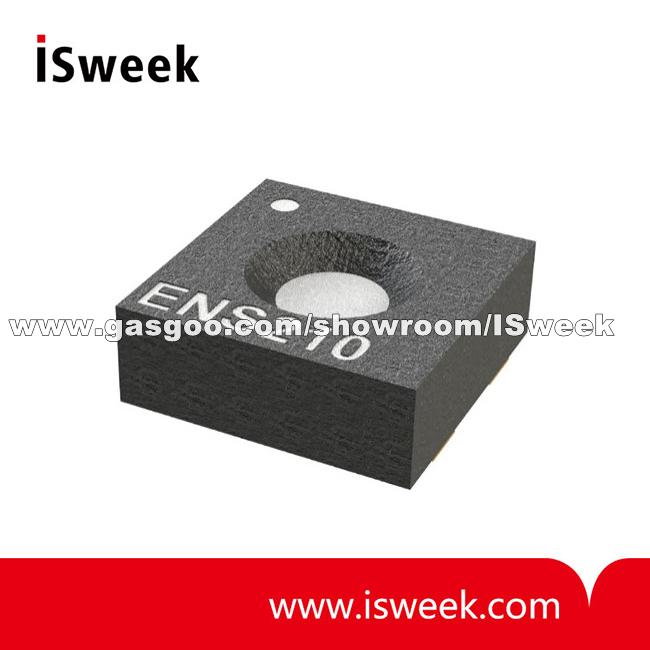

ENS210 General Description

The ENS210 integrates one relative humidity sensor and one high-accuracy temperature sensor. The device is encapsulated in a QFN4 package and includes an I²C slave interface for communication with a master processor.

ENS210 Key Benefits and Features
The benefits and features of ENS210, Relative Humidity and Temperature Sensor with I²C Interface are listed below:

Benefits	Features
Ultra-accurate	Temperature sensor (±0.15°C) Relative humidity sensor (Typ:±2.0%RH)
Wide sensing range	Temperature operating range (40°C to 100°C) Relative humidity operating range (0% to 100%)
Wide operating voltage	1.71V to 3.60V
Small foot-print	2.0mm x 2.0mm x 0.75mm
Industry standard two-wire interface	Standard (100kbit/s) and fast (400kbit/s) I²C
Low power	Automatic low-power standby when not measuring Active current: 6.6A @ 1Hz (1.8V) Standby current: 40nA
Cost effective	Digital pre-calibrated relative humidity and temperature sensor Output directly in %RH and Kelvin Wide supply voltage range
High reliability	Long-term stability


ENS210 Applications
The ENS210 applications include:

• Building Automation / Smart home / HVAC1

1.  Indoor air quality detection
2. Demand-controlled ventilation
3. Smart thermostats

• Home appliances

1. Air cleaners / purifiers
2. Refrigerators, washing machines, dishwashers, dryers

• Mobiles / Wearables
• IoT devices
• Portable devices for personal health and wellness
• Weather stations


ENS210 Block Diagram
The internal block diagram of ENS210 is shown in Figure 2. The I²C (communication) interface is connected to a controller which acts as the command interpreter and as bus master of the internal Advanced Peripheral Bus (APB). The memory and sensors are slaves of the APB. The MTP memory is used to store the sensor calibration parameters and unique ID.
To reduce power consumption the controller only powers the measurement engine when needed.
