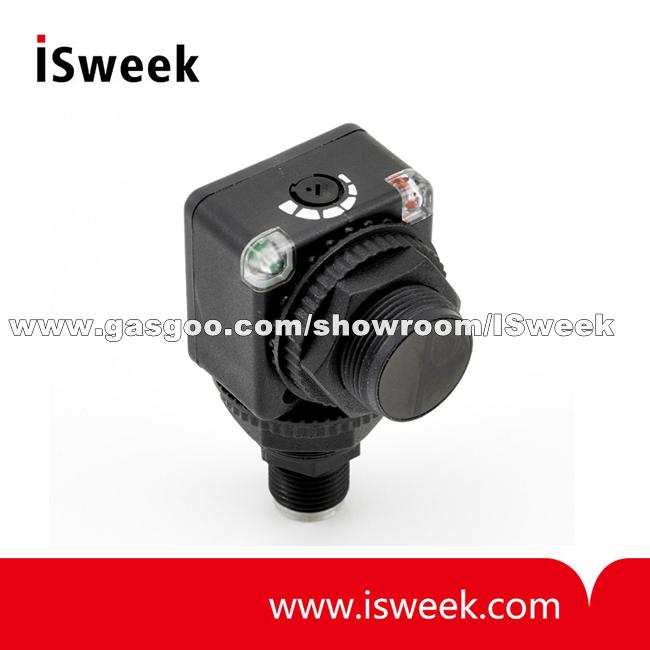

Compact Photoelectric Sensor

Compact Photoelectric Sensor

Application:  -

Market Type:  After Market

Product Attribute:

Applicationt:

-

Production Description:

RP18 Series Compact Photoelectric Sensor Description
M18 threaded lens
Visible Red LED
Several mounting options
Multi-voltage




Modes Ranges
Through Beam 0.1 ~ 20m
Retroreflective 0.1 ~ 2m
Diffuse 20 ~ 0.5m

RP18 Series Compact Photoelectric Sensor
  Through-beam Diffuse Diffuse
(Fixed-field with
Background
Suppression)		 Retroreflective Retroreflective -with
Polarizing Filter
Operating Range 20m (65.6 ft.) DC: 500mm ( 19.7 in.) AC: 300mm (11.8 in.) 100mm (3.94 in) 2m (6.56 ft.) 1m (3.28 ft.)
Light Emission 950nm Infrared LED Infrared LED, 880 nm Infrared LED, 880nm Infrared LED, 950nm Red LED, 680nm
DC Models - Quick Connect, M12 - Recommended Mating Cable: part # R-FS4TZ-V075 (straight), R-FA4TZ-V075 (right-angle)
Emitter RP18-T020MD-
EY9Q4LE
NPN RP18-T020MN-
CY9Q4UE		 RP18-D0500N-
CY9Q4UE		 RP18-D0100N-
CY9Q4UE-BS		 RP18-L2000N-
CY9Q4UE		 RP18-L2000N-
CY6Q4UE-PF
PNP RP18-T020MP-
CY9Q4UE		 RP18-D0500P-
CY9Q4UE		 RP18-D0100P-
CY9Q4UE-BS		 RP18-L2000P-
CY9Q4UE		 RP18-L2000P-
CY6Q4UE-PF
AC Models - Quick Connect, ½"-20 UNF - Recommended Mating Cable: part # U-FS4TA-V165 (straight), U-FA4TA-V165 (right-angle)
Emitter (2-wire) RP18-T020MA-
EY9Q4LM
Light-ON (3-wire) RP18-T020MA-
LY9Q4UM		 RP18-D0300A-
LY9Q4UM		 RP18-D0100A-
LY9Q4UM-BS		 RP18-L2000A-
LY9Q4UM		 RP18-L2000A-
LY6Q4UM-PF
Dark-ON (3-wire) RP18-T020MA-
DY9Q4UM		 RP18-D0300A-
DY9Q4UM		 RP18-D0100A-
DY9Q4UM-BS		 RP18-L2000A-
DY9Q4UM		 RP18-L2000A-
DY6Q4UM-PF
AC/DC Models - Quick Connect, ½"-20 UNF - Recommended Mating Cable: part # U-FS4TA-V165 (straight), U-FA4TA-V165 (right-angle)
Emitter (2-wire) RP18-T020MC-
EY9Q4LM
Light-ON (2-wire) RP18-T020MC-
LY9Q4UM		 RP18-D0300C-
LY9Q4UM		 RP18-D0100C-
LY9Q4UM-BS		 RP18-L2000C-
LY9Q4UM		 RP18-L2000C-
LY6Q4UM-PF
Dark-ON (2-wire) RP18-T020MC-
DY9Q4UM		 RP18-D0300C-
DY9Q4UM		 RP18-D0100C-
DY9Q4UM-BS		 RP18-L2000C-
DY9Q4UM		 RP18-L2000C-
DY6Q4UM-PF





RP18 Series Compact Photoelectric Sensor Technical Data



  DC AC AC/DC
Operating Voltage 10-30 VDC 24-240 VAC 20-250 VAC/DC
Voltage Drop 2.5V or less 3V @300mA AC; 2V @ 15mA AC 3V or less
Current Consumption 30mA or less 5mA or less 30mA or less
Response Time 1.5ms 15ms 15ms
Max. Load Current 200mA 300mA
Output Operation Light-ON or Dark-ON selectable  by control input wire Light-ON or Dark-ON selectable by type number
Reverse Polarity Protection Yes
Short Circuit Protection Yes
Overload Current Protection Yes
Housing Material PBT (plastic) housing
Indicators Red LED indicator
Environmental Rating IP67
Operating Temperature -25°C to +55°C (Max. relative humidity: 85%)
EMC IEC 60947-5-2, Parts 7.2.6.1.2.3 or RFI >3V/m (in 30-1000MHz), EFT >1KV, ESD >4KV (contact)
Voltage With tandability IEC 60947-5-2, Part 8.3.3.4 or 500 VDC (or 1500 VAC) for 1 min., between all supply terminals connected together and enclosure
Insulation Resistance >20M, with 500 VDC (or 1500 VAC) megger between all supply terminals connected together and enclosure.
Vibration Resistance IEC 60947-5-2, Part 7.4.2 or 10-55 Hz, 1.0mm amplitude in x, y, and z directions for 30 min.
Shock Resistance IEC 60947-5-2, Part 7.4.1 or 30g, 11ms in x, y, and z directions for six times each
Cable Standard length 2m. Other lengths available upon request
Connecto M12x1 DC Micro Connector ½-20" UNF

Compact Photoelectric Sensor
