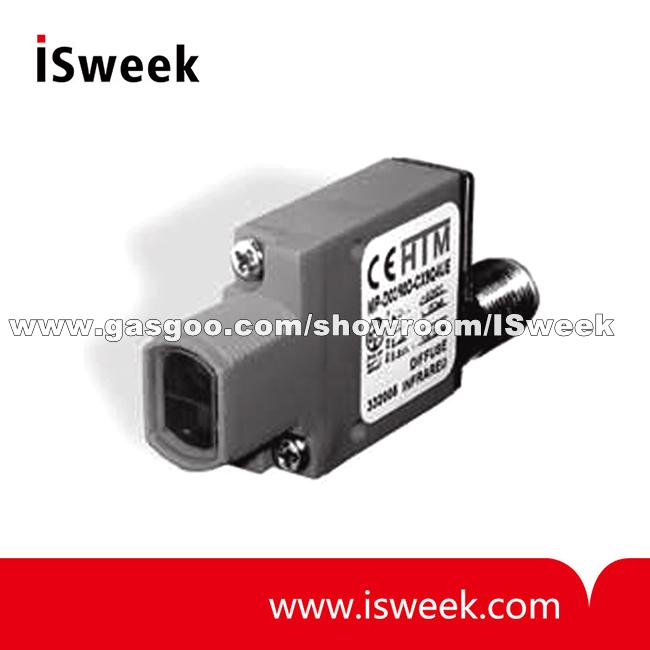

Universal Mount Photoelectric Sensor

Universal Mount Photoelectric Sensor

Application:  \

Market Type:  After Market

Product Attribute:

Applicationt:

\

Production Description:

MP Series Universal Mount Photoelectric Sensor Description
Mounts on Standard or Flat Bracket
Long Range - Up to 30m
Several Detection Modes
Compact Size





Modes Ranges
Through Beam 30m
Retroreflective 5m
Diffuse 380mm
Convergent 43mm
Fiber Optic Mode - (range depends on fiber used)

MP Series Universal Mount Photoelectric Sensor Part Numbers
DC Models - Quick Connect
Mode Through-beam (30m range) Retroreflective Diffuse Convergent
Light Emission Infrared LED, 880nm Red LED, 650nm Infrared LED, 880nm Red LED, 650nm
Operating Range 30m (98.4 ft.) 5m (16.4 ft.) 380mm (14.96 in.) 43mm (1.69 in.)
Part Numbers
Emitter MP-T030MD-EX9Q4LE
NPN / PNP MP-T030MD-CX9Q4UE MP-L5000D-CX6Q4UE MP-D0380D-CX9Q4UE MP-C0043D-CX6Q4UE

Mode Through-beam (3m range) Retroreflective (Polarized) Fiber Optic (Diffuse) Fiber Optic (Through-beam)
Light Emission Infrared LED, 880nm Red LED, 650nm Infrared LED, 880nm
Operating Range 3m (9.84 ft.) 2m (6.56 ft.) Depends on fiber used (see pages 18-21 )
Part Numbers
Emitter MP-T3000D-EX9Q4LE
NPN / PNP MP-T3000D-CX9Q4UE MP-L2000D-CX6Q4UE-PF MP-DGFD-CX9Q4UE MP-TGFD-CX9Q4UE

AC Models - Prewired
Mode Through-beam (30m range) Retroreflective Diffuse Convergent
Light Emission Infrared LED, 880nm Red LED, 650nm Infrared LED, 880nm Red LED, 650nm
Operating Range 30m (98.4 ft.) 5m (16.4 ft.) 380mm (14.96 in.) 43mm (1.69 in.)
Part Numbers
Emitter MP-T030MA-EX9C2L2
SPST, Solid State MP-T030MA-CX9C3U2 MP-L5000A-CX6C3U2 MP-D0380A-CX9C3U2 MP-C0043A-CX6C3U2

Mode Through-beam (3m range) Retroreflective (Polarized) Fiber Optic (Diffuse) Fiber Optic (Through-beam)
Light Emission Infrared LED, 880nm Red LED, 650nm Infrared LED, 880nm
Operating Range 3m (9.84 ft.) 2m (6.56 ft.) Depends on fiber used (see pages 18-21 )
Part Numbers
Emitter MP-T3000A-EX9C2L2
SPST, Solid State MP-T3000A-CX9C3U2 MP-L2000A-CX6C3U2-PF MP-TGFA-CX9C3U2 MP-DGFA-CX9C3U2

MP Series Universal Mount Photoelectric Sensor Technical Data



  DC Models AC Models
Power Supply 10 to 30 VDC 20 to 250 VAC
Current Consumption 25mA max. 25mA max. (1.7mA max. for emitter)
Output Configuration Bipolar: One current sourcing (PNP) and one current sinking (NPN) open-collector transistor SPST MOSFET solid-state relay with either
N.O. or N.C. contact (light/dark operate
selectable: 3-wire hook-up
Voltage Drop <2.0V @ 150mA <10V @ 200mA
Current Load Max 150mA 200mA
Response Time 1ms 8ms (4ms for Retroreflective Models)
Adjustments LIGHT/DARK Operate sensitivity adjustment switch
Connection M12 - Recomended Mating Cable: part # R-FS4TZ-
V075 (straight), R-FA4TZ-V075 (right-angle		 2 meter cable
Electrical Protection Short-circuit, Reverse Polarity and Overload
Current Protection		 -
Mechanical Protection IP67 (IEC)
Housing Material Reinforced thermoplastic polyester housing, totally encapsulated
o-ring sealing, acrylic lenses and stainless steel screws
Environment -20°C to +70°C (-4°F to 158°F) ; Max. 90% RH @ 50°C
Reference Standard IEC 60947-5-2

Universal Mount Photoelectric Sensor
