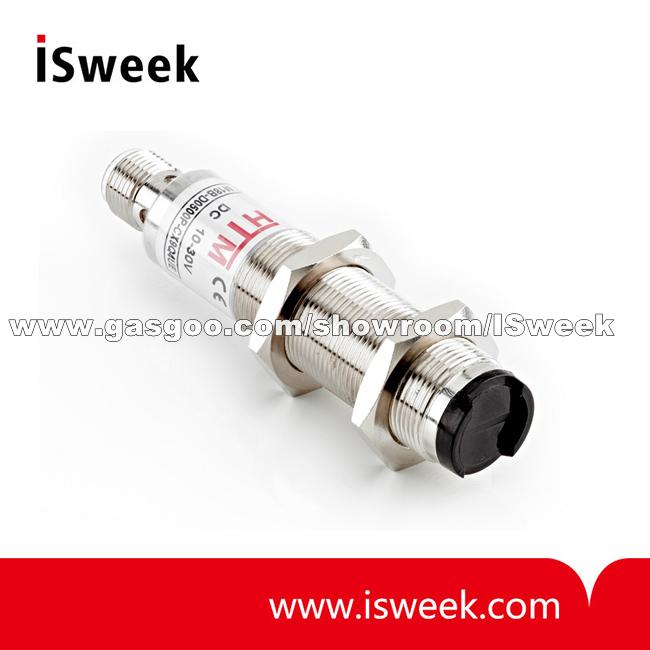

Cylindrical Photoelectric Sensor

Cylindrical Photoelectric Sensor

Application:  \

Market Type:  After Market

Product Attribute:

Applicationt:

\

Production Description:

M18 Series Cylindrical Photoelectric Sensor Description
Standard 18mm Housing
Pre-wired or Quick Disconnect
Metal or Plastic Housings
Self-contained Amplifier




Modes Range
Through Beam 15m
Retroreflective 3m
Diffuse 500mm




M18 Series Cylindrical Photoelectric Sensor Part Numbers



  Through-beam Diffuse Retroreflective Retroreflective
(Polarized)
Operating Range 15m (49.2 ft.) 0.5m (1.6 ft.) 3m (9.8 ft.) 1m (3.2ft.)
Light Emission 880nm Infrared LED 660nm Red LED

DC Models
Part Numbers - Metal Housing
Emitter M18B-T015MD-EX9Q4LE
NPN - Light/Dark  M18B-T015MN-CX9Q4UE M18B-D0500N-CX9Q4UE M18B-L3000N-CX9Q4UE M18B-L1000N-CX6Q4UE-PF
PNP - Light/Dark M18B-T015MP-CX9Q4UE M18B-D0500P-CX9Q4UE M18B-L3000P-CX9Q4UE M18B-L1000P-CX6Q4UE-PF
Part Numbers - Plastic Housing (right-angle body)
Emitter M18P-T015MD-EZ9Q4LE
NPN - Light/Dark M18P-T015MN-CZ9Q4UE M18P-D0500N-CZ9Q4UE M18P-L3000N-CZ9Q4UE M18P-L1000N-CZ6Q4UE-PF
PNP - Light/Dark M18P-T015MP-CZ9Q4UE M18P-D0500P-CZ9Q4UE M18P-L3000P-CZ9Q4UE M18P-L1000P-CZ6Q4UE-PF

AC Models
Part Numbers - Metal Housing
Emitter M18B-T015MA-EX9Q4LM
Light-ON M18B-T015MA-LX9Q4UM M18B-D0500A-LX9Q4UM M18B-L3000A-LX9Q4UM M18B-L1000A-LX6Q4UM-PF
Dark-ON M18B-T015MA-DX9Q4UM M18B-D0500A-DX9Q4UM M18B-L3000A-DX9Q4UM M18B-L1000A-DX6Q4UM-PF
Part Numbers - Plastic Housing (right-angle body)
Emitter M18P-T015MA-EZ9Q4LM
Light-ON M18P-T015MA-LZ9Q4UM M18P-D0500A-LZ9Q4UM M18P-L3000A-LZ9Q4UM M18P-L1000A-LZ6Q4UM-PF
Dark-ON M18P-T015MA-DZ9Q4UM M18P-D0500A-DZ9Q4UM M18P-L3000A-DZ9Q4UM M18P-L1000A-DZ6Q4UM-PF





M18 Series Cylindrical Photoelectric Sensor Technical Data



  DC Models AC Models
Power Supply 10 to 30 VDC 20 to 250 VAC
Current Consumption 30mA max. 5mA max.
Indicator LEDs Red LED (output activated)
Voltage Drop 2.5 V or less 10 VAC
Current Load Max 200mA 300mA
Response Time 1.5ms -
Connection M12 - Recommended Mating Cable:
part # R-FS4TZV075 (straight),
R-FA4TZ-V075 (right-angle		 ½" -20 UNF - Recommended Mating Cable:
part # UFS4TA-V165 (straight),
U-FA4TA-V165 (right-angle
Electrical Protection Short-circuit, Reverse Polarity and
Overload Current Protectio		 -
Mechanical Protection IP67 (IEC)
Housing Material Metal: Nickel-plated Brass; Plastic: PBT
Environment -25°C to +55°C (-13°F to 131°F) ; 35-85% RH
Storage Temp. -25°C to + 70°C (-13°F to +158°F)
Reference Standard IEC 60947-5-2




Cylindrical Photoelectric Sensor
