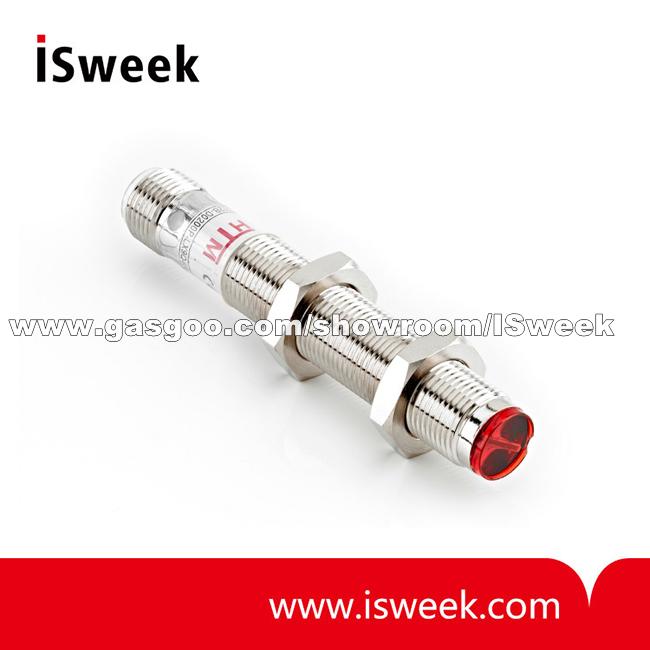

Cylindrical Photoelectric Sensor

Cylindrical Photoelectric Sensor

Application:  \

Market Type:  After Market

Product Attribute:

Applicationt:

\

Production Description:

M12 Series Cylindrical Photoelectric Sensor Description
Standard 12mm Housing
Pre-wired or Quick Disconnect
Self-contained Amplifier




Modes Range
Through Beam 5.2m
Retroreflective 1m
Diffuse 200mm




M12 Series Cylindrical Photoelectric Sensor



  Through-beam Diffuse Retroreflective (Polarized)
Operating Range 5.2m (17.06 ft.) 0.2m (0.66 ft.) 1m (3.28 ft.)
Light Emission 880nm Infrared LED 660nm Red LED
Part Numbers
Emitter M12B-T5200D-EX9Q4LE
NPN - Light/Dark  M12B-T5200N-CX9Q4UE M12B-D0200N-CX9Q4UE M12B-L1000N-CX6Q4UE-PF
PNP - Light/Dark M12B-T5200P-CX9Q4UE M12B-D0200P-CX9Q4UE M12B-L1000P-CX6Q4UE-PF
Technical Data
Power Supply 10...30 VDC
Current Consumption 30mA max.
Indicator LEDs Red LED (output activated)
Voltage Drop 2.5 V or less
Current Load Max  200mA
Response Time 1.5ms
Connection M12 - Recommended Mating Cable: part # R-FS4TZ-V075 (straight), R-FA4TZ-V075 (right-angle)
Electrical Protection Short-circuit, Reverse Polarity and Overload Current Protection
Mechanical Protection IP67 (IEC)
Housing Material Metal: Nickel-plated Brass; Plastic: PBT
Environment -25°C to +55°C (-13°F to 131°F) ; 35-85% RH
Storage Temp. -25°C to + 70°C (-13°F to +158°F)
Reference Standard IEC 60947-5-2




Cylindrical Photoelectric Sensor
