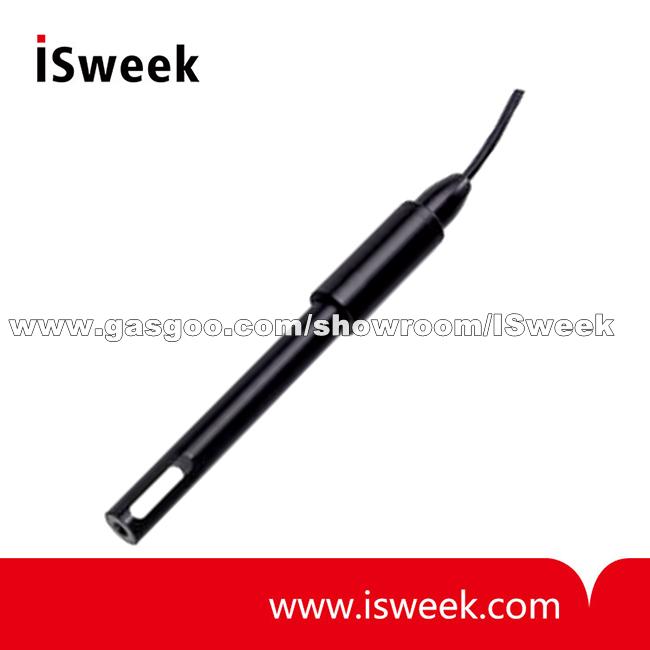

Rugged Water Conductivity Sensor

Rugged Water Conductivity Sensor

Application:  \

Market Type:  After Market

Product Attribute:

Applicationt:

\

Production Description:

WQ-COND Rugged Water Conductivity Sensors Description
WQ-COND Conductivity Sensors are suitable for measuring conductivity in a wide variety of applications including laboratories, streams, rivers, and groundwater.  The conductivity sensor's small size and rugged housing make it useful for hand held measurements or permanent installation.

WQ-COND Rugged Water Conductivity Sensors Features

  • Fully encapsulated electronics
  • Dual 4-20 mA outputs
  • Sensor armor available for harsh environments
  • Marine grade cable with strain relief
  • Measure conductivity up to 82 feet deep

WQ-COND Conductivity Sensors Applications
Ideal for stream and lake monitoring, aquaculture studies, baseline analyses, mitigation monitoring, and other environmental applications.

WQ-COND Rugged Water Conductivity Sensors Specifications
Conductivity Ranges 0 to 200 µS/cm
200 to 2000 µS/cm
2 to 20 mS/cm
20 to 200 mS/cm
200 to 2000 mS/cm
Temperature Range 23 to 158°F (-5 to 70°C)
Conductivity Accuracy +0.5% of reading
Temperature Accuracy +0.4ºF (+0.2ºC)
Conductivity Resolution 0.1 uS/cm
1 µS/cm
0.01 mS/cm
0.1 mS/cm
1 mS/cm
Temperature Resolution 0.02°F (0.01°C)
Output Dual 4-20 mA
Temperature Response 99% in <20 seconds
Maximum Pressure 35 psi (82 ft (25m))
Immersion Depth 1.4 inches (36 mm)
Operating Voltage 10-36 VDC
Current Draw 20 mA plus sum of both sensor outputs
Warm-up Time 3 seconds minimum
Operating Temperature 23 to +158°F (-5 to +70°C)
Storage Temperature -4 to +212°F (-20 to +100°C)
Dimensions 8 inch L x 0.86 inch Diameter (202mm L x 22 cm Dia.)
Weight 8 oz (227 g) plus cable

WQ-COND Rugged Water Conductivity Sensors Ordering & Options
Conductivity Sensors 1
Order No. Conductivity Range
WQ-Cond-1 0 to 200 uS/cm
WQ-Cond-2 200 to 2000 uS/cm
WQ-Cond-3 2 to 20 mS/cm
WQ-Cond-4 20 to 200 mS/cm
WQ-Cond-5 200 to 2000 mS/cm
1) Sensors include 25 ft of cable.

Cable
Order No. Description
WQEXC Extra Sensor Cable, per foot (up to 500 ft)

Accessories
Order No. Description
903836 Plastic Armor
903837 Stainless Steel Armor
