Submersible Water Quality Sensor Turbidity Sensor

Submersible Water Quality Sensor Turbidity Sensor

Application:  \

Market Type:  After Market

Product Attribute:

Applicationt:

\

Production Description:

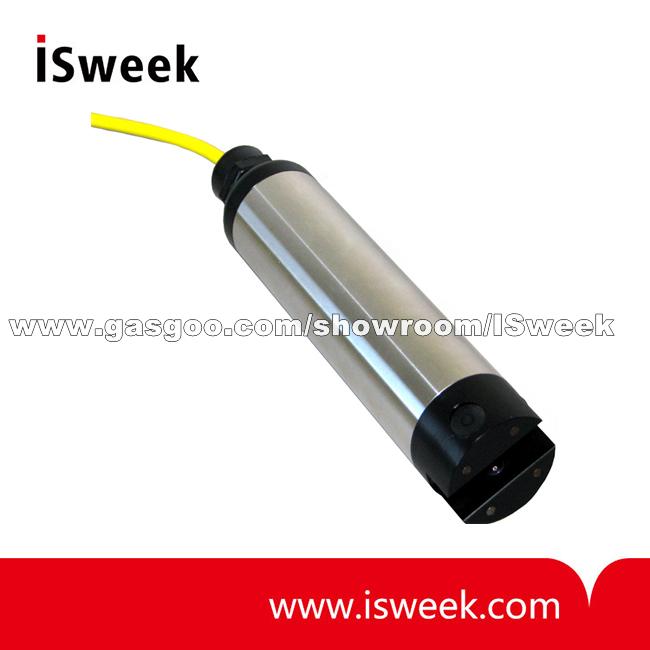

WQ730 Turbidity Sensor Description
WQ730 Turbidity Sensor is a highly accurate submersible instrument for in-situ environmental or process monitoring. Applications for the WQ730 include: water quality testing and management, river monitoring, stream measurement, reservoir water quality testing, groundwater testing, water and wastewater treatment, and effluent and industrial control.

WQ730 Submersible Water Quality Sensor Turbidity Sensor Features

  • 4-20 mA output
  • Marine grade cable with strain relief
  • In-situ turbidity measurement
  • Simple and convenient to use
  • Rugged stainless steel and Delrin sensor housing

WQ730 Turbidity Sensor Specifications
Range 0-50 NTU and 0-1000 NTU
Accuracy +/- 1% of full scale
Meter Resolution 12 bit
Output 4-20mA
Method Nephelometer with correction
Operating Voltage 10-36 VDC @ 40 MS
Current Draw 30 mA plus sensor output
Warm Up Time 5 seconds minimum
Operating Temperature 14 to 122°F (-10 to +50°C)
Materials 306 stainless steel, delrin, polyether jacketed cable
Maximum Pressure 30 psi
Light Source Infrared LED, (880nm)
Cable Length 25 ft standard (optional to 500 ft)
Size Body= 1 1/2 x 8.5 inches (3.8 x 21.6 cm) (Dia x Length)
Weight 1lb (454 g) (Sensor)
