Precision Pressure Transducer

Precision Pressure Transducer

Application:  -

Market Type:  After Market

Product Attribute:

Applicationt:

-

Production Description:

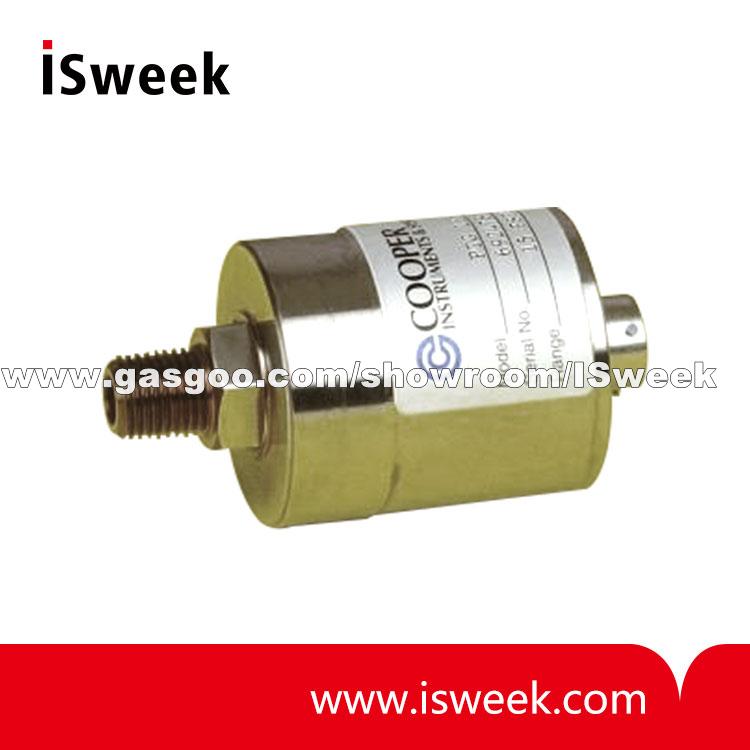

PTG 135 - Precision Pressure Transducer

The model PTG 135 (gage pressure) is designed for rugged industrial applications requiring high accuracy pressure measurements. These transducers are designed with 4 arm 350 ohm strain gage bridge and have welded stainless steel construction. Using a "True Gage" design, the PTG 135 utilizes a second welded diaphragm that hermetically seals the strain gage circuitry which allows the transducer to reference atmospheric pressure.

PTG 135 Precision Pressure Transducer Features
Hermetically Sealed
High Accuracy
Welded Diaphragm
Optional Amplified Output
0.1% Full Scale Accuracy

PTG 135 Precision Pressure Transducer Specifications



Pressure Ranges 1 psig to 60,000 psig
Accuracy ± .1% F.S.
Material Stainless Steel
Temperature Range 60 to 160 F
Output 2mV/V ±0.25%
Output Resistance 350 ±5 Ohms
Bridge Rresistance 350 ohm
Excitation 10 V ac-dc (15V max)
Safe Overload 25% to 50% Over Capacity
Pressure Ports 1 to 10,000 psia see chart
15,000 psia to 60,000 psia - 9/16-18UNF per AE F250-C for 1/4 OD
High Pressure Tubing
Cable As Required - mating conn. not incl. (PTO6A-10-6S)







PTG 135 PRESSURE RANGES D" L"
1; 2; 5 psig 2.25 1.81
10; 15 psig  1.75 2.00
25; 50; 75; 100; 150; 200; 300; 500 psig 1.50 2.01
750; 1000; 1500, 2000, 3000; 5000 psig 1.50 2.35
7500; 10,000 psig 1.50 2.39
15,000; 20,000; 30,000; 50,000; 60,000 psig 1.50 2.21



Order Code Example:


Precision Pressure Transducer
