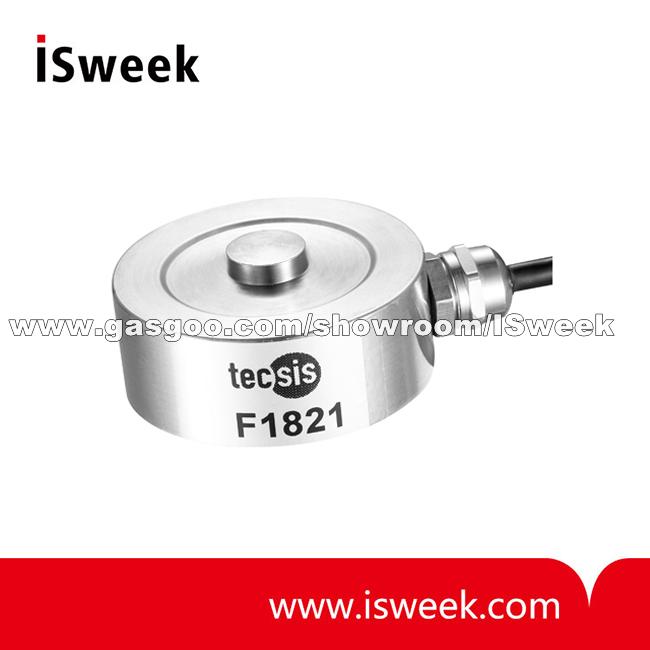

F1821 Compression Load Cell F1821 Compression Load Cell Size and Capacity F1821 Compression Load Cell Features & Applications Stainless steel load cell. Its capacities range from 20kg to 10t. It comes complete with 3m of load cell cable. The protection class is IP66. Stainless steel construction. Fully welded seal with stainless steel cover for hostile environment applications. There are four holes in the background of the load cell, this makes it easy to install. Apply for mechanical assembling, stamping force test and control which precision requirements are undemanding.Like pressing machine, Bearing assembly machine. Transient force measurement and control of dynamic stamping equipment. Hopper scale and tank scale dynamic weight control. F1821 Compression Load Cell Technical Parameters
Specifications
Technique
Rated output
1.5±10% mV / V
Zero balance
±3 % F.S.
Non-linearity
0.5 % F.S.
Hysteresis
Repeatability
0.1 % F.S.
Creep (30min)
Temp.effect on output
0.05 % F.S. / 10°C
Temp.effect on zero
Input impedance
385±10
Output impedance
350±3
Insulation
5000M/100VDC
Recommended excitation
10 V
Maximum excitation
15 V
Compensated temp range
-10 ~ 60 ºC
Operation temp range
-20 ~ 80ºC
Safe overload
150% F.S.
Ultimate overload
200 % F.S.
Cable size
Ø4×3000 mm
Protection class
IP66
Cable color code
Input: Red(+) Black(-); Output: Green(+) White(-);
