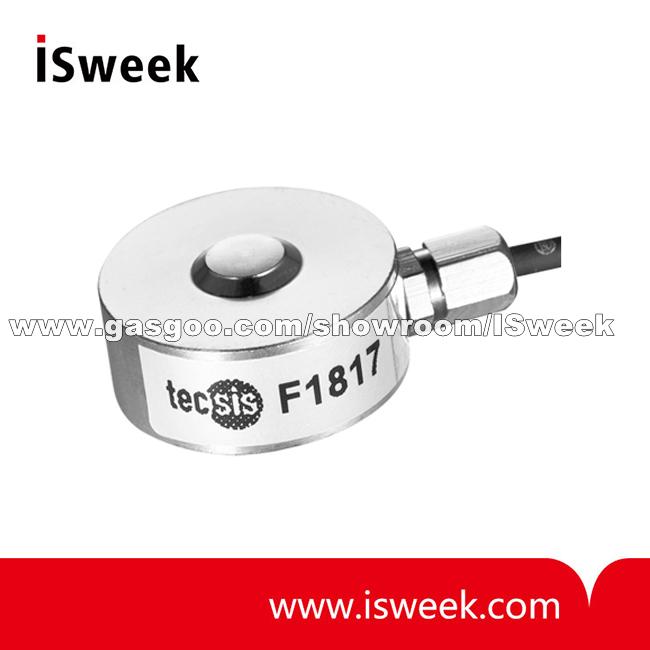

F1817 Compression Load Cell F1817 Compression Load Cell Size and Capacity F1817 Compression Load Cell Features & Applications Stainless steel miniature type load cell. Designed for low profile compression service. Its capacities range from 5Kg to 1t . It comes complete with 1.5m of load cell cable. Diameter 19mm, height 9mm. Customizable. The protection class is IP66. It is suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force. Measure the force in the limited space. F1817 Compression Load Cell Technical Parameters
Specifications
Technique
Rated output
1.5±10% mV / V
Zero balance
±2 % F.S.
Non-linearity
1 % F.S.
Hysteresis
0.25 % F.S.
Repeatability
0.25% F.S.
Temp.effect on output
0.36 % F.S. / 10°C
Temp.effect on zero
0.18 % F.S. / 10°C
Input impedance
350±10
Output impedance
350±5
Insulation
5000M/100VDC
Recommended excitation
5 V
Maximum excitation
10 V
Compensated temp range
- 10 ~ 60°C
Operation temp range
- 20 ~ 80°C
Safe overload
120% F.S.
Ultimate overload
200 % F.S.
Cable size
Ø2×3000 mm
Protection class
IP64
Cable color code
Input: Red(+) Black(-); Output: Green(+) White(-);
