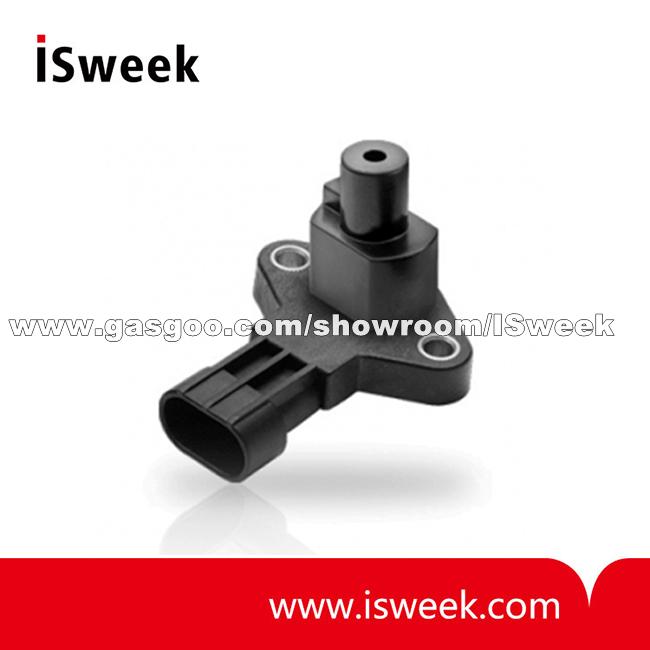

AN8 Sensors Programmable, non-contact magnetic position sensors capable of continuous rotation AN8 Series Angle Position Sensors Description The AN8 Series sensors are non-contact, intrinsically linear angle position sensors. The sensors operate through the use of Hall Effect technology with magnetic fields generated by permanent magnets. They provide a linear change in voltage output (ratiometric to the input voltage) corresponding to an angular rotation of the input shaft. AN8 Series Angle Position Sensors Features Angular position sensor with high tolerance for misalignment Non-contact angular position sensing and full 360° rotation Custom programming available for: angle range, slope, PWM output, custom magnets contact factory No mechanical interface means no parts to wear out or jam Available with Delphi connector or 12 (305 mm) wire leads RoHS compliant IP67 Maximum air gap of 5.5 mm (0.22)* AN8 Series Angle Position Sensors Typical Applications Implement (fork lift, agricultural trailer hitch, etc.) position sensing Steer, throttle by wire Gear selection Zero-contact encoder alternative Replacement for smart bearings Outboard trim sensing AN8 Series Angle Position Sensors Environmental Specifications
