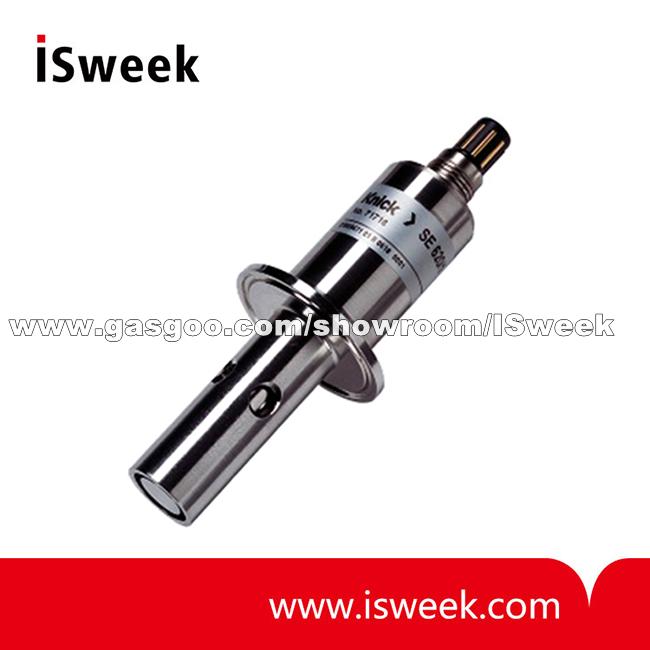

SE 620 Conductivity Sensor Pharma-compliant 2-electrode sensor in hygienic design Conductivity sensor in pharmaceutical design with coaxial electrodes and integrated temperature detector. Low surface roughness of < 0.8 m. The materials are physiologically harmless and meet FDA requirements. Steam-sterilizable. Reliable and easy checking of the measurement according to USPusing PortaSim simulator. SE 620 Conductivity Sensor Applications Pure and ultrapure water, water for injection (WFI), food, ion exchangers, reverse osmosis plants, also chip manufacturing SE 620 Conductivity Sensor Facts - Low surface roughness - Steam-sterilizable - CIP-capable - Integrated temperature detector - Measuring range 0.001 to 50 S/cm - Coaxially arranged electrodes - Independent of installation conditions - Insulator and sealing materials FDA-listed - VP screw cap - PortaSim simulator with VP plug - Incl. Inspection Certificate 3.1 SE 620 Conductivity Sensor Specifications
Cell constant
0.01/cm
Measuring range
0.001 ... 50S/cm
Material
Cell and electrodes:stainless steel 1.4435, electropolished;
Insulator and O-rings (plastics), FDA-listed
Roughness
< 0.8m
Temperature detector
Pt 1000
Temperature
0 ... 135 °C (steam-sterilizable)
Pressure
16 bar at 25 °C, 9 bar at 60 °C
Process connection
Clamp DN 25
Sensor cap
VP (VarioPin)
