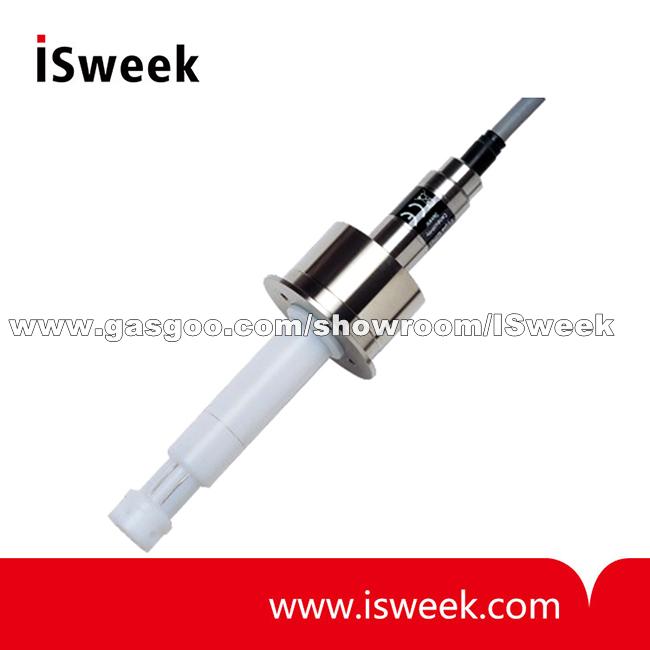

SE 603 Conductivity Sensor 4-electrode sensor with large measuring range providing maximum corrosion resistance, sensor materials: PTFE and platinum For special chemistry applications, universal measuring range from pure water to 600 mS/cm. With fixed cable and integrated temperature detector. Process-wetted materials: PTFE and platinum. Ultracompact design. SE 603 Conductivity Sensor Applications Measurement of pure water up to high conductivities. Highly corrosive chemical processes, bleaching liquors, oxidizing as well as heavily polluted (e.g. fibrous) materials, condenser leakage monitoring. SE 603 Conductivity Sensor Facts - High level of chemical resistance due to corrosion-proof materials - Large measuring range due to 4-electrode technology - Measurement at high temperatures and pressures - Slim, ultracompact design SE 603 Conductivity Sensor Specifications
Cell constant* )
0.14 cm ~ 0.38 cm (exact value printed on rating plate)
Measuring range
Approx. 0.5S/cm ~ 600 mS/cm
Material
Body: PTFE;
Electrodes: Platinum
Temperature detector
Pt 1000 (IEC Class A)
Temperature
Max. 120
Pressure
Max. 12 bar
Process adaptation
Special flange (see Accessories)
Cable
Fixed cable, 5 m
