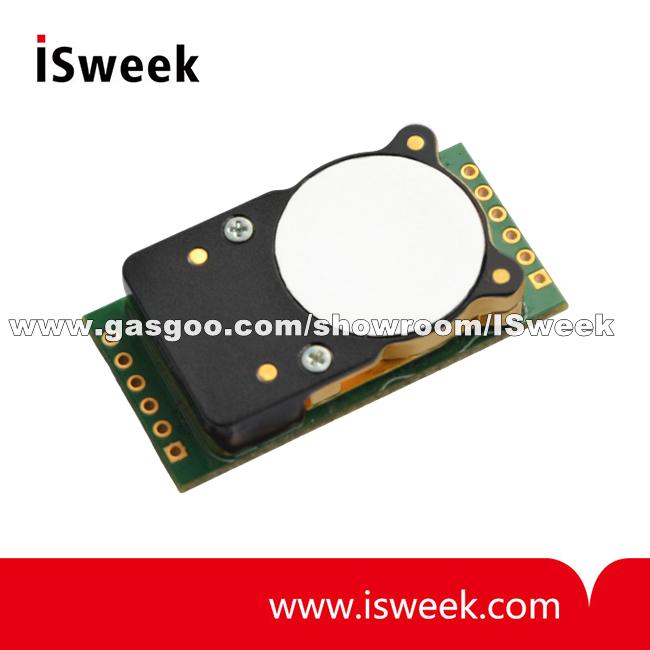

Low Power Low Profile Carbon Dioxide Sensor NDIR CO2 Sensor Description
The CozIR®-LP3 CO sensor uses proprietary solid-state LED technology to achieve unrivalled low-power consumption, making it suitable for a range of applications including battery-powered and wirelessly connected devices.
The CozIR®-LP3 provides the user with extensive flexibility, a choice of UART or I²C control interfaces, digital and analogue CO measurements, and a fail-safe digital alarm level monitor.
The CozIR®-LP3 includes on-board power management, allowing the user to control sensor power consumption during measurements and when the sensor is inactive. The user can reduce active current consumption to <1µA without switching o the sensor.
The low height form factor, small footprint and flexible mounting options make the CozIR®-LP3 ideal for applications where space is at a premium.
The CozIR®-LP3 is designed to run fully autonomously with automatic self-checking and auto-zeroing, enabling the sensor to operate for long periods with no user intervention.
Low Power Low Profile Carbon Dioxide Sensor NDIR CO2 Sensor Features
• Ultra-low-power COsensor, <3.5mW average
• 30ppm (typ.) measurement accuracy
• Solid state LED optical technology
• UART or I²C control and data interface
• Analogue and digital COmeasurement outputs
• On-board power management, <3µW quiescent
• User programmable COlevel alarm
• Built-in auto-zero function
Low Power Low Profile Carbon Dioxide Sensor NDIR CO2 Sensor Applications
• Indoor Air Quality (IAQ)
• IoT and Smart Technology with wireless connectivity
• Demand-Controlled Ventilation (DCV) systems
• Building Management Systems (BMS)
• Air Quality and HVAC Systems
Low Power Low Profile Carbon Dioxide Sensor NDIR CO2 Sensor Specifications
|
CO Sensor Specifications
|
|
Measurement Ranges
|
0-2000ppm, 0-5000ppm, 0- 10000ppm (0-1%)
|
|
Accuracy (typ.)
|
±(30ppm +3% of reading)
|
|
Time to 1st Reading
|
From 0.8 Seconds
|
|
Response Time
|
<30 Seconds (Diusion limited)
|
|
Sample Method
|
Solid-state LED NDIR Diffusion
|
|
Electrical and Mechanical Specifications
|
|
Measurement Output
|
Analogue or Digital (UART and I²C)
|
|
Supply Voltage
|
3.25V - 5.5V
|
|
Power Consumption (typ.)
|
3.5mW active, 3µW in low power mode
|
|
Dimensions and Weight
|
38.62mm x 19.5mm x 9.3mm, ~2.5g
|
|
Operating Conditions
|
|
Operating Conditions - Temperature
|
0°C to 50°C
|
|
Operating Conditions - Humidity
|
0-95% RH, non-condensing
|
|
Storage Conditions - Temperature
|
-40°C to +70°C
|
|
Operating Pressure
|
500mbar - 2bar
|
|
Sensor Lifetime
|
>15 years
|
|
Environmental Compliance
|
RoHS3 and REACH
|
