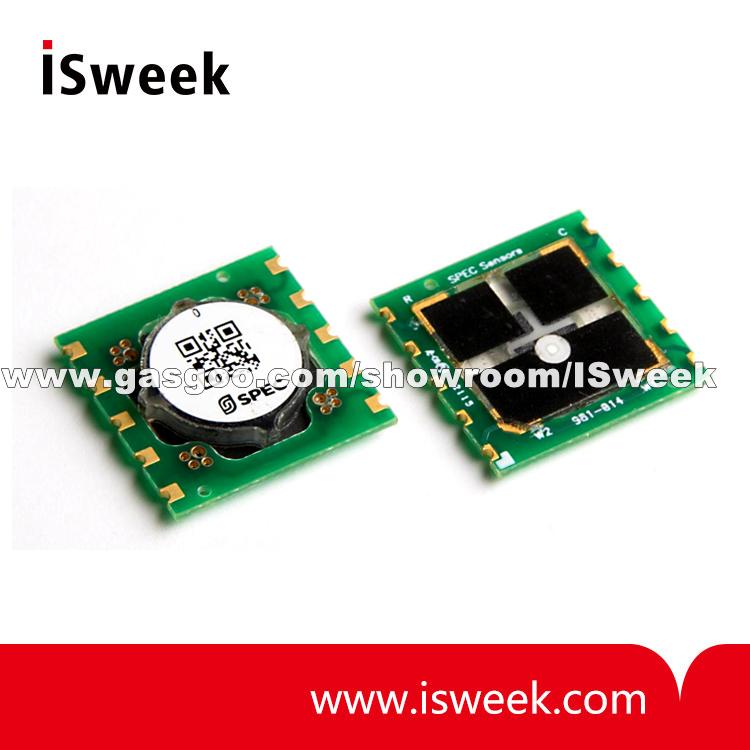

3SP_NO2_5F C 15x15 NO2 Sensor 0-5 Ppm FC Package 110-508

3SP_NO2_5F C 15x15 NO2 Sensor 0-5 Ppm FC Package 110-508

Application:  other

Market Type:  After Market

Maximum Prodcution Capacity:  3000 Pcs/Month

Delivery Time:  5~7 Work Days

Place of origin:  United States

Price Terms:  FOB

Delivery Port:  HK

Minimum Order:  1Piece/Pieces

Product Attribute:

Applicationt:

other

Production Description:

3SP_NO2_5F C NO2 Sensor DESCRIPTION
SPECs printed sensors offer the performance of the best quality electrochemical sensors at a fraction of the price. SPECs printed sensors are also ultra-thin, offering easy integration into wireless, portable, and networked solutions. These sensors are ideal for health, environmental, industrial and residential monitoring, because of their high performance, low cost and small size.

3SP_NO2_5F C NO2 Sensor BENEFITS
NEW Onboard Filter Removes Ozone!!!
NEW More Stable with T & RH!!!
Small Size with Low Profile (20x20x3 mm)
Long Life (10 years expected life)
Fast Response (< 15 seconds)
Low Power Consumption
ROHS Compliant

3SP_NO2_5F C NO2 Sensor APPLICATIONS
Air Quality Monitoring
Industrial Safety
Air Purification Control

3SP_NO2_5F C NO2 Sensor SPECIFICATIONS

Measurement Range 0 to 5 ppm
Resolution < 20 ppb (instrumentation dependent)
Repeatability < +/- 3 % of reading
Response Time T90 < 300 ( 200 seconds typical)
Sensitivity @ -25 mV bias -30 +/- 15 nA/ppm
Expected Operating Life > 5 years (10 years @ 23+/-3C; 40+/-10% RH)
Operating Temperature Range -40 to 50 C (-20 to 40 C recommended)
Operating Humidity Range - non-condensing 0 to >95% RH (15 to 95% continuous)
Power Consumption 10 to 50 uW (circuit & ambient NO2 dependent)

3SP_NO2_5F C NO2 Sensor CROSS SENSITIVITY
Most chemical sensors exhibit some cross-sensitivity to other gases. The following table lists the relative response of common potential interfering gases, and the concentration at which the data was gathered. Additional data will be made available as it is collected. Contact SPEC sensors for additional information.
Gas ppm Typical Response as ppm NO2
Carbon Monoxide 100 <0.02
Chlorine 10 <0.5
Ethanol 100 <1
Hydrogen Sulfide 5 <0.02
Nitric Oxide (NO) 5 <0.1
Nitrogen Dioxide 5 <5
Ozone  1 <0.1
Sulfur Dioxide 5 <0.02
