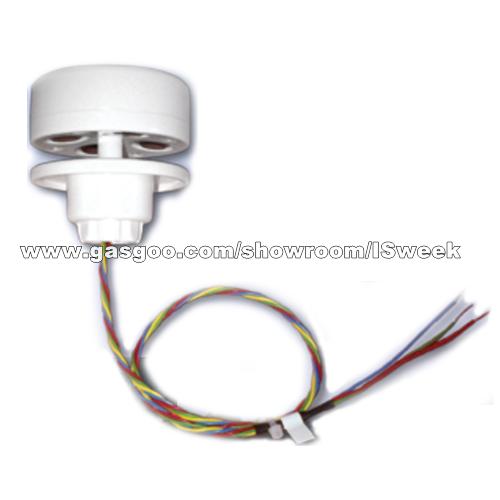

SONIC-ANEMO-MICRO Ultrasonic Wind Speed Sensor Description:
As a result of its very special electronic architecture the SONIC-ANEMO-MICRO shows a very low electrical consumption. It is ideal for remote stations or mobile installation. SONIC-ANEMO-MICRO is an OEM sensor designed for integration in other original Equipment. This sensor shows a very low consumption. It operates from 300µA. SONIC-ANEMO-MICRO is the lowest consumption power solution of all LCJ sensors.
SONIC-ANEMO-MICRO Ultrasonic Wind Speed Sensor Specification:
Output data format
ASCII format, avaibility
Information transmited
Instant. W. Speed, Instant. W. Angle, avaibility
Output rate
select. 1 meas. and Tx: every 1,6 or 18 s
Wind module sensitivity
0.12 m/s
Wind module resolution
0.05 m/s
Wind module dynamic
0.12 to 40 m/s
Direction sensitivity
+/-1.5°
Direction resolution
1°
Power supply
3 V to 3.6 V DC
Electrical consumption
200µA avg
Op. temp. without icing
-15° C to +50° C
Cable
50 cm / 4x0.22 mm2
Connection
4 wires
Weight of the head
100 gr
Weight of unit assembly
N/A
Mounting
