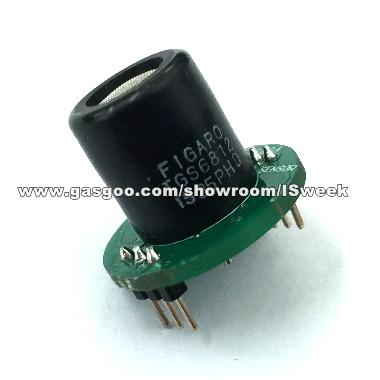

FSM-T-04A Combustible gas sensor Module Features: * Linear analog output proportional to gas concentration * Maintenance free * Compact size * Meets RoHS requirements
FSM-T-04A Combustible Gas Sensor Module Specification:
Product name
Combustible gas sensor module
Model No.
FSM-T-04A
Gas sensor
TGS6812 (catalytic type)
Detection range
0 ~ 50,000ppm CH4
(also can detect methane, iso-butane, and propane)
Error
±3%LEL
Output voltage (Vconc)
0.5~4.5V DC(Max 5V)
Trouble
Vconc=0~0.1V
Factory setting output
Vconc in air
0.5~1.5V
Response time (T90)
30S
Operating conditions
-10C ~+70C, 20~95%RH (No condensing)
Storage conditions
-10C ~+80C, 20~95%RH
Input voltage (VIN)
5.0±0.2V DC , 3.0±0.1V DC
Power consumption
1.5W
Weight
15g or less
Dimensions
23.6mm H:23.2mm
Standard test conditions
Ambient conditions
20±2C, 65±5%RH
Circuit conditions
5.0±0.2V,3.0±0.1V DC
Conditioning period prior to test
10 minutes
