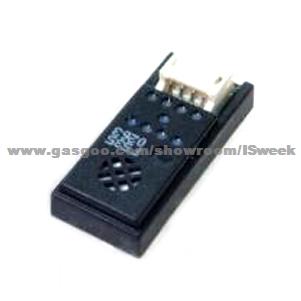

Humidity and Temperature Sensor Module HTG3535CH DESCRIPTION Based on the rugged HUMIREL humidity sensor, HTG3535CH is a dedicated humidity and temperature plug and play transducer designed for OEM applications where a reliable and accurate measurement is needed. Direct interface with a micro-controller is made possible with the modules humidity linear voltage and direct NTC outputs. HTG3535CH is designed for high volume and demanding applications. Humidity and Temperature Sensor Module HTG3535CH FEATURES Voltage Supply: 5 Vdc Nominal Output @55%RH: 2.401~2.559 V Humidity Average Sensitivity: +26 mV/%RH Current consumption: 1.2 mA dc Humidity Measuring Range: 0~100 %RH Humidity Operating Range: 0~100%RH Temperature Operating Range: -40 ~110°C Suitable for small bulk assembly Product free from Lead, Cr (6+), Cd and Hg. Compliant with RoHS Full interchangeability. Better than +/-3%RH and +/-0.25°C Humidity calibrated within +/- 3% RH @ 55% RH Temperature measurement through NTC direct output Demonstrated reliability and long term stability Reliability not affected by repeated condensations Humidity and Temperature Sensor Module HTG3535CH APPLICATIONS Automotive Home Appliance Printers
