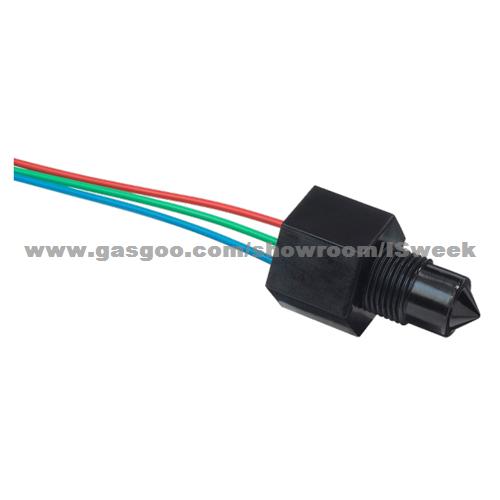

Liquid Level Switches Optomax Industrial Series GENERAL DESCRIPTION The LLC Industrial Series liquid level sensor provides single point liquid detection via a TTL compatible output. This sensor range was designed to directly switch incandescent indicators, sounders, relays or applications which require higher output power. An infra-red LED and phototransistor accurately positioned at the base of the sensing tip ensure good optical coupling between the two when the sensor is in air. When the sensing tip is immersed in liquid, the infra-red light escapes from the cone causing a change in the amount of light detected at the phototransistor which makes the output change state. Various electrical outputs are available to suit different applications. FEATURES * Liquid level switches that can detect almost any liquid type; oil or water based * Choice of material; Polysulfone (standard) or Trogamid® * Choice of threads and terminal connections BENEFITS * High power * Industrial supply voltage * Direct load drive design TECHNICAL SPECIFICATIONS Supply voltage (Vs) 4.5V DC to 15.4V DC Supply current (ls) 2.5mA max. (Vs = 15.4V DC ) Output sink and source current (lout) 1A Operating temperatures -25'C to +80'C Storage temperatures -30'C to +85'C Housing material Polysulfone Sensor termination 20AWG, 250mm PTFE wires, 8mm tinned OUTPUT VALUES Output Voltage 3 (Vout): lout = 1A Vs = 4.5 ~ 15.4V DC Output High Vout = Vs - 1.5V max
