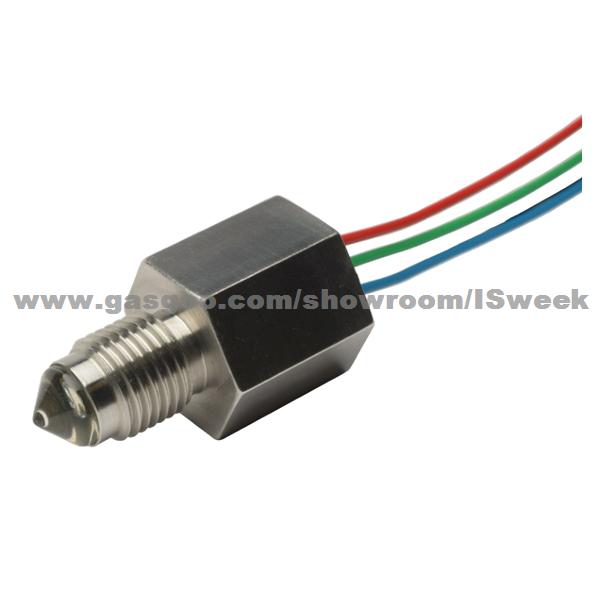

Liquid Level Switches
Optomax Industrial Glass Series
FEATURES Liquid level switches that can detect almost any liquid type; oil or water based Suitable for harsh environments; robust stainless steel housing and glass tip Choice of mounting threads
BENEFITS High power Industrial supply voltage Direct load drive
TECHNICAL SPECIFICATIONS Supply voltage (Vs) 4.5VDC to 15.4VDC or 8VDC to 30VDC Supply current (ls) 2.5mAmax.(Vs = 15.4VDC) or 7.5mAmax.(Vs = 30VDC) Output sink and source current (lout) 1A Operating temperature1 Standard: -25 to +80 Extended: -40 to +125 Storage Temperatures Standard: -30 to +85 Extended: -40 to +125 Operating pressure 0 to 85 bar Housing material Stainless steel with glass tip Sensor termination 20AWG, 250mm PTFE wires, 8mm tinned
ORDER INFORMATION Generate your specific part number using the convention shown below. Use only those letters and numbers that correspond to the sensor and output options you require omit those you do not.
