Product Attribute:
Weight:3kg
Power:150w
Production Description:
Powered by Built-in Integrative Digital Amplifier
High Efficiency, Best Sound, Safe Protection
110VAC&220VAC Power Supply

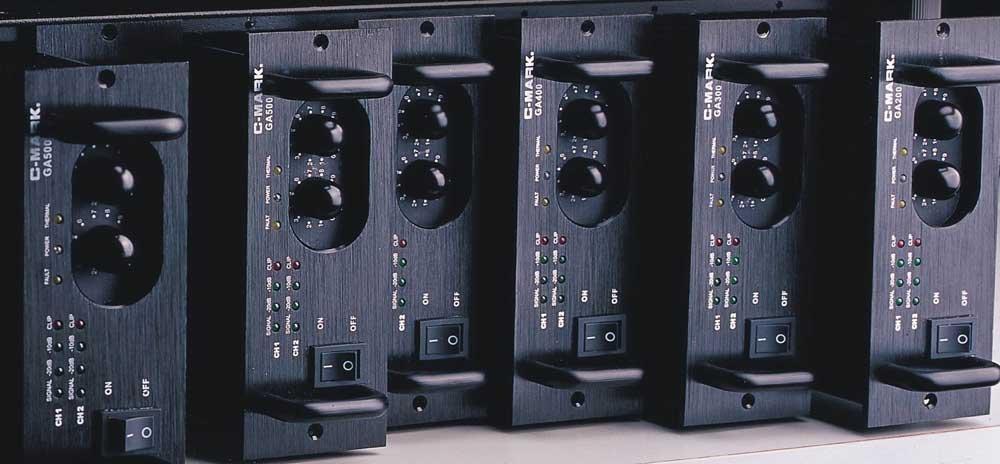

C-MARK Series digital mini amplifier, powered by built-in integrative digital power amplifier, features high efficiency, best sound, safe protection, incredible compatibility of electromagnetism and open choices of 110VAC&220VAC power supply.
Features
1. Plug & play, user-friendly, clear indication, easy manipulating for nonprofessionals.
2. The digital power amplifier features best sound, high efficiency and high reliability.
3. Complete protection from short circuit, over surge current, over heat, over voltage, power limiting, over temperature frees users from worry of malfunction.
4. The amplifier can be configured three output modes, stereo, mono and bridged. Signal input/output adopts φ6.35 stereo interface for balance signal transmission.
5. Suitable for many applications like commercial, company, entertainment, school, army and house of worship etc.
GA300 Specifications
Output power
8Ω: 150W x 2 (1kHz)
4Ω: 300W x 2 (1kHz)
Bridged
8Ω: 500W (1kHz)
Free Power Combination from 1pcs to 7pcs in a standard rack as you like,if 7 pcs combined, max power can reach 8Ω 300w x 14,4Ω 600W x 14,8Ω Bridged 1000W x 7 channel.
Input sensitivity: 0dB
Input impedance : 20KΩ（ balance ） 10KΩ（ unbalance ）
Frequency response : >20～20kHz @8Ω
THD+N: 0.01% （1kHz,1W）
S/N: 110dB（ A weighted ）
Power supply : AC110V/220V（ two kinds power supply ）
Fuse cube current : 6A（AC110V） 3A（220V）
Net weight: 3Kg
Gross weight: 3.5Kg
Net dimension （L*W*H）: 387 *155 * 57 mm
