digital audio amplifier

Product Attribute:

Voltage:85v

Combination:Amplifier

Production Description:

1. Over current protection
2.Current limit technology
3.Built-in thermal limit design

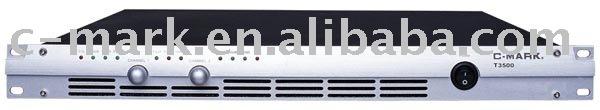

T3500 Specifications:

• Power: 1000W/8Ω 2000W/4Ω 2300W/2Ω

• S/N signal to noise ratio:105dB

• GAIN: 30dB-33dB (T series digital amplifier are provided three gain selection for connection of different load usage. Low impedance connects low gain to prevent exceptional protection)

• Frequency response: 20Hz-20kHz (+1/-2dB)

• Damping factor: 300@1kHz

• Input impedance: 15kΩbalanced

Phase differences in the effective frequency range(typical value):

• 20Hz:+11°

• 1kHz:-6°

• 20kHz:-137°

CMRR common mode rejection rate ( typical value):

• 100Hz:71dB

• 1kHz:66dB

• 20kHz:66dB

Cross-talk attenuation (typical value):

• 20Hz:85dB

• 1kHz:80dB

• 20kHz:65dB

THD total harmonic distortion (typical value):

• 100Hz:0.08%

• 1kHz:0.08%

• 20kHz:0.05%

IMD intermodulation distortion (typical value):

• Power:1 Watt

• DIM 100 (dB):0.05%

• SMPTE 60/7k (dB):0.05%

Power supply Specifications:

• Global voltage AC 85V-265V 50/60Hz

• Electric current@220V AC

• 1/8 rated power:2A/8Ω 3.4A/4Ω 3.8 A/2Ω

• 1/3 rated power:4.2A/8Ω 8A/4Ω 9A/2Ω

Other Specifications:

• Cooling Mode: compulsive cooling (4 Temperature-control fans)

• Input connector: balanced XLR

• Output connector: SPEAKON connector

• Control: 2 channels volume control (front panel), gain selection (rear panel)

• LED indicator: level indicator, malfunction indicator, overheat indicator

• Dimensions: 483*400*44mm W*D*H

• Weight: 9.8kgs
