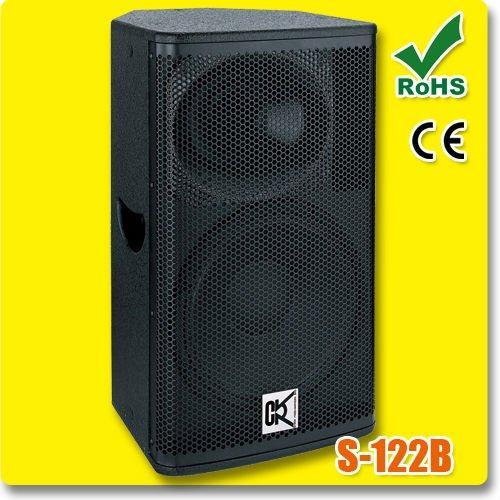

CVR 12 INCH PRO AUDIO SYSTEMS,

Product Attribute:

Sensitivity:98dB

Impedance:80hm

Applicationt:

PRO AUDIO SYSTEMS

Production Description:

PRO AUDIO SYSTEMS; LOUDSPEAKER;
Power handling: 300W(RMS)600W(PEAK)
sensitivity: 98dB(1W/1M)
Max/S.P.L: 123dB(PEAK/1M)

Model: S-122B
type: Two-way,full range system
Frequency response: 50Hz-20Hz±3dB
Power handling: 300W(RMS)600W(PEAK)
sensitivity: 98dB(1W/1M)
Max/S.P.L: 123dB(PEAK/1M)
LF Sestion: 12 inch 310mm woofer 75mm(3in) coil
Nominal Impedance: 8 Ohm
HF Sestion: 1.75 inch compression driver with 44mm diaphragm
Nomianl Impedance: 8 Ohm
Output section: 2-channel
Dispersion pattern: 80°H×60°
Finish: grey paint
Speaker cables: 1(+)1(-)
Input connectors: 2×NL4MP speakon
Dimensions: 355×610×410mm(W×H×D)
Package Dimensions: 425×680×480mm/0.14cbm
Enclosure: 18mm plywood
Net Weight: 25kg
Gross Weight: 28kg
