CVR 12 INCH WATERPROOF LINE ARRAY SYSTEM RECOMMEND

Product Attribute:

Sensitivity:104dB

Applicationt:

CVR 12 INCH

Production Description:

2x1.75 inch neodymium HF drivers;
2x6.5 inch neodymium MF drivers;
1x12 inch neodymium LF drivers;
Waterproof finsiehd

We are the professional audio equipment manufacturer in Guangzhou of China. We have more than 6 years to design and producing pro audio speaker.
Our chief products as bellow,
* Line array systems
* 3-way Bi-amp full range long throw systems
* 2 way full range speakers
* Bi-amp 3 way line array systems
* Power amplifiers
* Switching Amplifiers
* Pro DJ flight case/speaker flight case

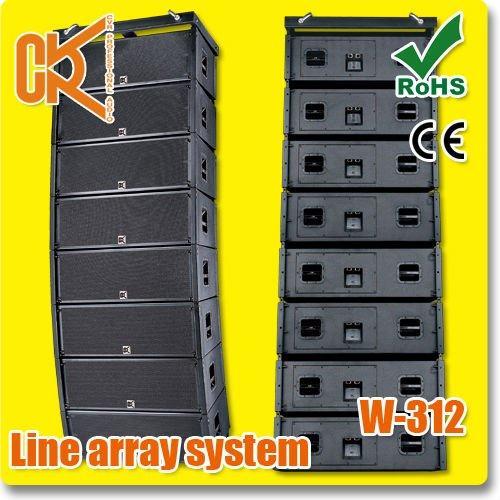

12 inch waterproof  outdoor line array system.

Model: W-312
Type: Line array system
Frequency Response: 45Hz-20KHz±3dB
Directivity Index(DI): 12(±2)1.2KHz-16KHz
Power Handing: LF 500W (RMS) 1000W (PEAK)
                           MF 300W (RMS) 600W (PEAK)
                           HF 160W (RMS) 320W (PEAK)
Sensitivity: LF 104dB (1W/1M)
                  MF 107dB (1W/1M)
                  HF 111dB (1W/1M)
Max/S.P.L: LF 131dB (PEAK/1M)
                  MF 132dB (PEAK/1M)
                  HF 133dB (PEAK/1M)
LF section: 1×12(310mm) neodymium woofer 75mm (3in) coil
Nominal Impedance: 8 Ohm
MF section: 2×6.5 neodymium MF 170mm (6.5in) Dia 50mm (2in) coil
Nominal Impedance: 16 Ohm
HF section: 2×1.75 neodymium compression driver with 44mm titanium diaphragm
Nominal Impedance: 16 Ohm
Output section: 3-channel
Dispersion pattern: 110°H×7°
Finish: water-proof, wear-resistant textured black paint
Speaker cables: LF1(+)1(-) MF2(+)2(-) HF3(+)3(-)
Rigging system: Please refer to the W-312 user manual before any operation
Input connectors: 2×NL8MP speration
Dimensions: 1130×396×500mm (W×H×D)
Enclosure: Birchen wood
Weight: 60kg
