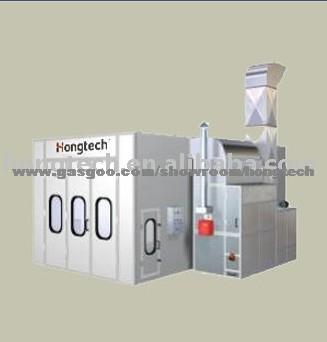

SBA-9-45B Industrial Spray Booth

Product Attribute:

Power:29.5KW

Applicationt:

auto

Production Description:

Product Details:

Type	Spray Booths
Power	29.5KW
External Size	9200X4500X3500MM(LXWXH)
Internal Size	9344X6896X4100MM(LXWXH)
Voltage	As request
Certification	ISO 9000/9001/9004/19011: 2000
Place of Origin	China (Mainland)
Brand Name	Hongtech
Model Number	SBA-9-45B

Payment & Shipping Terms:

Price:	Get Latest Price

Detailed Product Description
SBA-9-45B(without basement) Spray Booth is an advanced type of industrial spray booth

SBA-9-45B(without basement) Spray Booth is an advanced type ofindustrial spray booth which absorbing several technical advantagesfrom domestic and abroad.Excellent design and perfect technology makeour spray booth more suitable to the market's requirements.
Theinner dimension 9200X4500X3500mm is very popular in many countries.Andit's equipped many parts imported parts,like the Italy Rielloburner,Philip lights,etc.We can adjust the size according to customer'sdesires.
CE certification guarantees excellently performance,strong practicabilities,and high economical efficiency.

Technical Data

<

Inside Dimension	9200X4500X3500MM(LXWXH)
Outside Dimension	9344X6896X4100MM(LXWXH)
Pit	Without basement. Exhaust air from 2 rows of pit in the ground, dimension of each pit is 7000x840mm(LXW)
Main door	3-folds, 3300X3400MM(WXH), color: white
Personal door	1-fold, 700x2000MM(WXH), color: white
Wall panel	thickness: 70mm, m, tongue and groove structure, 0.426mm color steel with polystyrene inside, color: white
Lighting	Ceiling lights: 12Unitsx4Pcs=48Pcsx36W, Side lights: 8Unitsx4Pcs=32Pcsx36W ,Vertical set. Illuminance: ?450LUX
Generator setting	Intake air from side upper direction, exhaust air fromrear side direction, quadrate steel frame, outside is white coatedsteel, inside is galvanized steel.
Intake and exhaust air systems 3 units	1 unit, 2x7.5KW double-intake centrifugal fans for intake air, model YDW5.6M, air capacity is 20000m3/h for each fan
	1x11KW double-intake centrifugal fans for exhaust air, model TAE-710H, belt-drive, air capacity is 36000m3/h for each fan
Heating system  3 units	1pcs Riello RG5S oil burners, Maximum heatproductivity: 260000Kcal/H, stainless steel heat exchangers, electricdampers from spraying to baking cycle. Highest working temperature: 80?
Filter system	Pre-filter, high efficiency filter(ceiling filter),floor filter(fiberglass), M-shape activated carbon filter, extractfiberglass replaced by level side.
