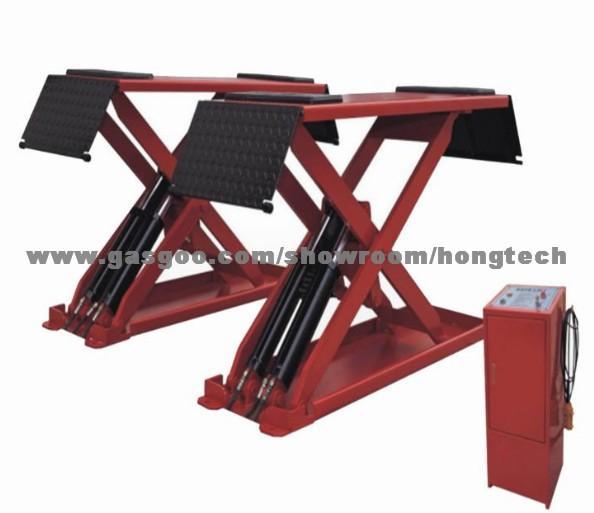

MEE103 Scissor Lift

MEE103 Scissor Lift

Application:  auto

Market Type:  After Market

Product Attribute:

Lifting Capacity:3T

Type:Scissor Lift

Applicationt:

auto

Production Description:

Detailed Product Description
MEE103 car lifts,auto lift,scissor lift
ISO 9000/9001/9004/19011: 2000



MEE103 3Ton Super Thin Scissor Lift which adopted oversea technologies and manufactured under strict monitor.
105-906mm flexiable lifting height.

  • Motor pump imported from Italy.
  • Oil cylinder and oil seal are imported from Taiwan.
  • Inside of cylinder assy has the special treat ment and make sure that is doesn't leak oil.
  • Control cabinet was equipped.
  • Wile switch is addedary,It is coutrolled long distantly.

Technical Data

Parameters Data
Lifting Capacity 3T
Power of Motor 2.2Kw
Lifting Height 105-960mm
Power Supply 1Ph/220v or 3Ph/380v
