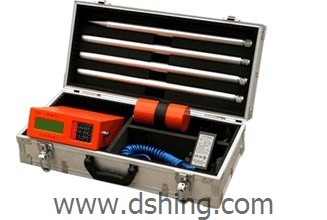

DSHM-3 Proton Magnetic Detector

Product Attribute:

Applicationt:

Acura

Production Description:

Introduction:
   DSHM-3 proton magnetic detector is a highly sensitive weak magnetism measurement meter, applying the theory of proton magnetic moment revolving freely in geomagnetism. It is applied to  the observation of total geomagnetic field, including ground magnetic exploration of department like geology, oil, metallurgy and coal etc., surface base station of navigation and ocean magnetic measurement, magnetic variation observation of geomagnetic observatory in earthquake predict work.

Main Advantages:
   Power consumption, reliable and stable in performance. High resolution, full automatic tuning, dot matrix graphic LCD, site measured curves display, data auto-record and storage, daily variation auto-calibration, can be connected with computer to process data, full English menu, simple operation, reasonable structure, small volume, light weight, strong anti-jamming ability.

Technical Specifications
Power source: lithium battery, 15.5V~16.8V/3.8Ah, work 10 hours continuously
Measurement range: 30,000nT~70,000nT
Resolution: 0.1nT
Precision:±1nT
Allowed gradient: vertical gradient2000nT/m
                 Horizontal gradient1500nT/m
LCD lattice: 192*64
Data stored: 4005 (in daily variation method)
              2670 (in manual method)
Working temperature: -20~+50
Working humidity:90% (30)
Mainframe size: 210*80*200mm
Mainframe weight: 2kg
Probe size: 72*140mm
Probe weight: 1kg
