DSHS-1 Deep Digital Seismograph

Product Attribute:

Applicationt:

c

Production Description:

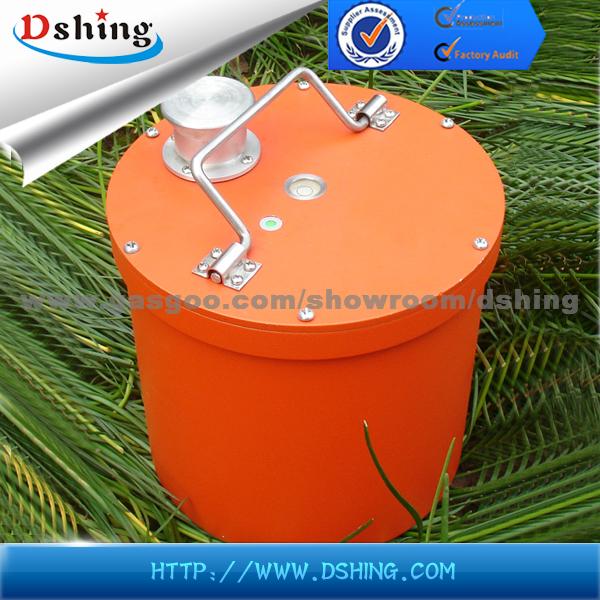

DSHS-1 Deep Digital Seismograph

Main Applications

•
  DSHS-1 Deep Digital Seismograph is a kind of 3D data acquisition device. Mainly utilizes explosion and huge seismic wave to detect the characteristics and properties of crustal deep structure; microseismic detection can also be used in the research of natural earthquakes, 3D seismic survey of oil field gas, etc, especially for long time unattended testing
  System consists of data acquisition device, zero time receiver and built-in geophone. Reflection and Refraction Exploration: Bedrock embedded depth, shape and regularities of distribution research, hydrological and engineering and environmental geological basic investigation.

Main Features

•
  Timing power-on for data acquisition and power-off upon completion, automatic data storage
• GPS time service, geographical location targeting
• 3D Observation
• 32-bit A/D converter, high precision and high dynamic range can be reliably guaranteed
• Low-noise design, system noise is lower than 1μV
• PDA or laptop computer operation
• Industrial CF card data storage, safe and reliable
• Small-sized, water-proof, shock-proof, anti-interference

Main Technical Specifications

•
  Signal Using Channels: 3 channels
• A/D Converter: 32 bit
• Sampling Interval: 1 ms, 5 ms, 0 ms, three taps optional
• Preamplifier gain: 1, 32, 64 times optional
• Frequency Response (Bandwidth): 1~60Hz
• Conformity of Amplitude between Channels: smaller than 5%
• Phase Difference between Channels: Less than 0.1ms
• Crosstalk Suppression between Channels: Greater than 100 dB
• Dynamic Range: no less than 125 dB
• Time Stability: 5×10-8
• CF Card Capacity: Industrial 4G
• Water-Proof: 1 m
• Working Temperature: -20°C~40°C
• Power Supply: +7.2V23AH and -7.2V5.2AH
• Volume: Diameter 170mm;Height 160mm
• Power Consumption: in operation: 130 mA; on standby 25 mA
• Weight: 5.7 kg
