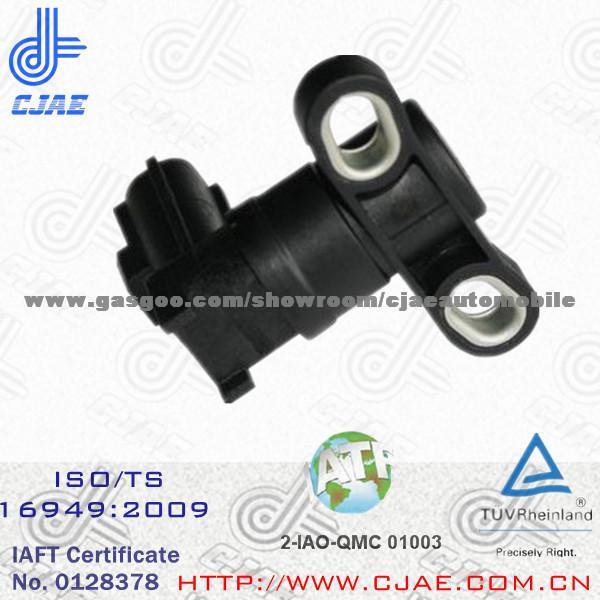

Crankshaft Position Sensor

Product Attribute:

Input Voltage: v

Applicationt:

Ford

Production Description:

Function,
Engine speed detecting,
TDC (Top Dead center)position detecting,
Ignition time (ignition advance angle) signal providing,
Crankshaft position signal providing,


Technical Parameter

Operation temperature	-40140
Coil resistance	400±550 (at 20)
Coil inductance	L:345mH430mH (at 20, 1kHz)
working clearance	0.5mm1.9mm


Testing wheel gear specification,

Thickness	2mm 2.1mm
Width	3mm±0.05mm
Outside radius	40.1mm ±0.1mm
Convex tooth height	3mm
Tooth space	3.7mm±0.05mm
Tooth QTY	33
Material	SAE1015(C15)


Output Parameter

Wheel gear speed 30r/min.

V(p-p)150mV


Out shell material: PA66+GF30
Plug and socket material: PBT+G30

Environmental resistance test

Ø  Temperature tolerance test
Ø  High / low temperature resistance test
Ø  Resistance-to-humidity test
Ø  Oil resistance test
Ø  Impact resistance test
Ø  Vibration resistance test
Ø  Lead strength test
Ø  Salt atmosphere test
Ø  Endurance test
