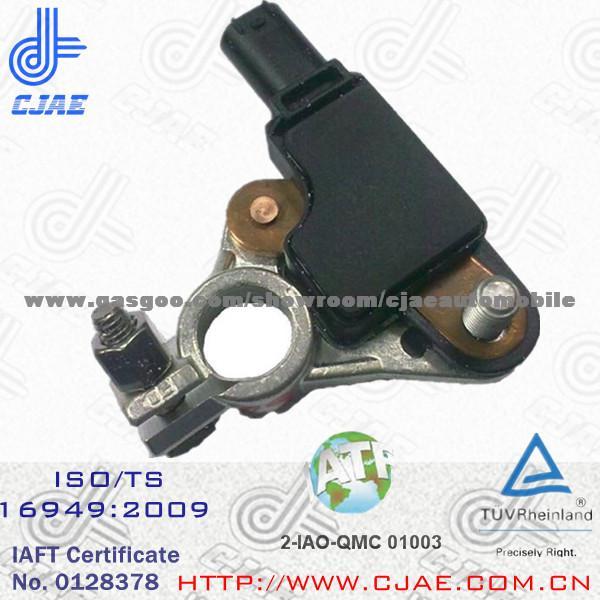

Electronic Battery Sensor

Product Attribute:

Voltage:12v

Material:Copper

Weight:12g

Typical Clients:

Chongqing Changan

Production Description:

• General Introduction

EBS (Electronic Battery Sensor) stands for the electronic battery sensor which can accurately monitor a variety of real-time status of the battery to work with the ECU to complete sophisticated automotive energy system management control.
EBS were first developed by BOSCH Company and widely used in luxury cars. The second generation of EBS is more accurate and stable, JSC001 which produced by CJAE are currently been mass produced for CHANGAN enterprise on different vehicles in China since 2010.

•
  Can be installed on all standard vehicle battery
• Batteryvoltage measurement and read accurately
• Batterycurrent measurement and read accurately
• Batterytemperature measurement and read accurately
• Comply with LIN2.1 stands
• battery status monitor
• battery capacitance calculation
• battery charge-discharge control



•
  vehicle electric power control
• engine safety start control
• energy consumption control
• ensure vehicle power supply
• extend battery service life
• oil saving
• electronic power management
• carbon emission reduction and environment protection



1.
   complete and clear logo mark
2. bright and clean components surface
3. free of fash, burr, crack, corrosion and oil pollution
4. uniform, compact, luster and complete plating

LIN I/O comply with LIN2.1
Communication protocol and signal define comply with UAES integrated power calculation EMS system


Working temperature	-40~105
Working Voltage	6V~16V
Average quiescent current	0.6mA
Current detection range	-1A+1A]-200A,+200A]-1500A+1500A
Current detecting section	{-1A,+1A,2-10A]{-200A,+200A,2-7A] -1500A+1500A, 2-4A
Temperature detection range	-40~105
Voltage detection range	6V~18V
IP	IP65
Standby current	1mA
Bus baud rate	19200kbps
Request respond time	10ms

1. LIN I/O comply with LIN2.1
2. communication protocol and signal define comply with UAES integrated power calculation EMS system
3. screw bolt torsion, M6: 6N.m±1.5N.m  / M8: 20N.m±2N.m
