Applicationt:
Toyota ( Previa)
Toyota ( Rav4, Prado, Hiace)
Production Description:
Specifications:
Rated Voltage |
12 |
24 |
V |
|
Rated Torque |
3 |
3.4 |
N.m |
|
No load Current |
2.5 |
1.3 |
A |
|
No load Speed |
90±10 |
90±10 |
rpm |
|
Rated Current |
8 |
4.5 |
A |
|
Rated Speed |
65±15 |
64±15 |
rpm |
|
Stall current |
25 |
13 |
A |
|
Stall Torque |
8.0 |
8 |
N.m |
|
Noise |
55 |
55 |
dB |
*Features:
-ISO 9001
-Environmentally friendly
-High quality, low price
-Supply design service
1.ISO9001 certified
2.various sizes and models available.

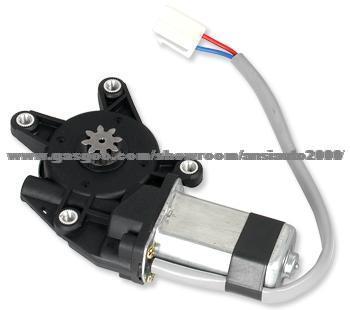

3.This power window motor is with superb performance.
4.High quality tested as we have advanced laboratory.
5.Software for specification drawing CAD.UG.Proe as per different products.
6.Various output-shaft shapes are available.
7.Water-resistant construction.
* Each product is under strict and efficient inspection throughout the processing operation, the results are sent to the customers together with finished products.
The following testing will be performed:
Thermal protestors testing /Salt spray testing /Hardness testing /Vibration testing /Water-spray testing /Noise testing /Dust testing /High & Low temperature testing
Packing and delivery:
Delivery: 35days
Supply ability: 60,000sets per month
Mini order: 500sets
Packing: small box in carbon
