Product Attribute:
Supply Ability:5000 Piece/Pieces per Month hydraulic pressure sensor with membrane
Delivery Details:10-15 days after payment
Production Description:
Railway Truck Pressure Transmitter 250Bar Low Cost Water Supply System Pressure Sensor
HPT906 pressure transducer/transmitters use high quality sputtered film pressure sensor as signal sensing element, through automatic testing, laser trimming compensating zero and sensitivity in wider temperature range the amplifier circuit is in stainless steel housing, transforming sensor signal into standard output signal. Through strict component making, semi-finished product and all-finished product testing and aging, the transmitter is stable and reliable, having excellent flexibility, sensitivity and diversity. The product is widely used for pressure measure and control of hydraulic system, petroleum, chemi-industry, gas and air products field, metallurgy, power station and hydrology, etc.
|

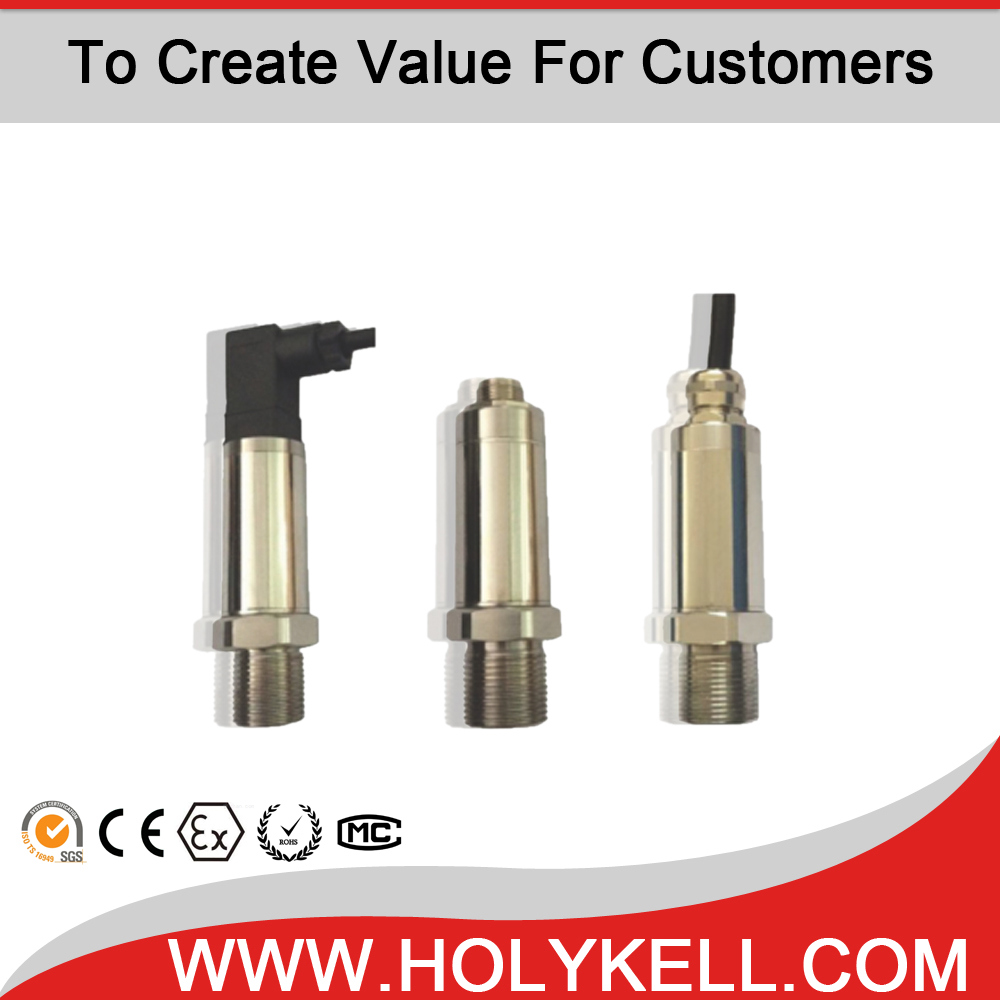

♦ Details Show of hydraulic pressure sensor with membrane |
|
♦ Specifications of hydraulic pressure sensor with membrane |
|
Product Name:
|
hydraulic pressure sensor with membrane
|
|
Pressure Range:
|
0-6Bar.....1000 Bar Optional (sputtered film)
|
|
Pressure Type:
|
Gauge pressure; Sealed gauge pressure optional.
|
|
Accuracy:
(Linearity Hysteresis
Repeatability)
|
≤ ±1.0%F.S
≤ ±0.5%F.S
≤ ±0.25%F.S (customized)
Including non-lin., rep. and hys. Optional
|
|
Medium Temp:
|
-40?…125?(Typical); -55…150?(by customized)
|
|
Ambient Temp:
|
-30?hellip; 85?Typical); -55…145?(by customized)
|
|
Temperature Compensation:
|
-40…80?/span>
|
|
Electronic Wire:
|
2 Wires
|
3 Wires
|
|
Output:
|
4~20Ma
|
0~5 V
|
0~10 V
|
0.5~4.5 V
|
|
Power Supply:
|
10~30 V DC
|
12~30 V DC
|
15~30 V DC
|
5 V dc
|
|
Electronic connection:
|
Smaller Hirschman Terminal Box IP65
4 Pins M12 Connectors IP45
Packard connector, 3 Pins IP67
Outlet cable 2 meters IP68 Optional
|
|
Cable length:
|
Cable or no by customized.
Cable length standard with 1 meter.
Cable diameter about 6 mm
|
|
Pressure
connect port:
|
1/4’‘NPT male 1/4’‘NPT Female, M20*1.5, G1/2’’ male,
G1/4’’male, G1/4’’ Female, G3/8’’ male optional. (by customized)
|
|
Certificate:
|
Explore Proof Ex(ia)II CT6 and CE approving
|
|
Characters:
♥ Accuracy: ≤±0.5%F.S.
♥ Wide working temperature scope
♥Max 10 years lifetime.
♥Excellent resistance against impact, overload,
Shock and erosion.
♥Highly-efficient lighting absorption
and strong RFI & EMI resistance
♥ Impact resistance and disturbance
♥ 1.5 times range standard overload.
♥5 times range burst pressure
♥CE approving
|
Applications:
♥Gas pressure measurement
♥ Oxygen Services
♥ Petrochemical industry
♥ Hydraulic and pneumatic systems
♥ Mine metallurgy
♥ HAVC, LNG, CNG Systems
♥ Refrigeration, Compressor systems
♥ Industrial machinery manufacture
♥ Construction, engineering machinery
♥ Combustion engine, oil engine and generator units.
♥ And so on
|
production process
