Product Attribute:
Supply Ability:12000 Piece/Pieces per Month oil pressure sensor
Delivery Details:5 to 7 days
Production Description:
2017 hot selling engine generator oil pressure sensor
You will benefit from our 10 years level and pressure measurement experiences and 18 months warranty, 0 return back rate ,0.015% maintence rate.
Product Description
1.Suitable for wall hanging furnace, gas furnace, gas storage, etc all kinds of hydraulic, pneumatic pressure measurement
2.Suitable for civil use product batch
3.Static accuracy: plus or minus 1.0% FS
4.Pressure range 0-1.2 MPa (can be customized according to customer requirements)
5.Wide range of temperature compensation
6.Medium for non-corrosive gas, water, oil, etc

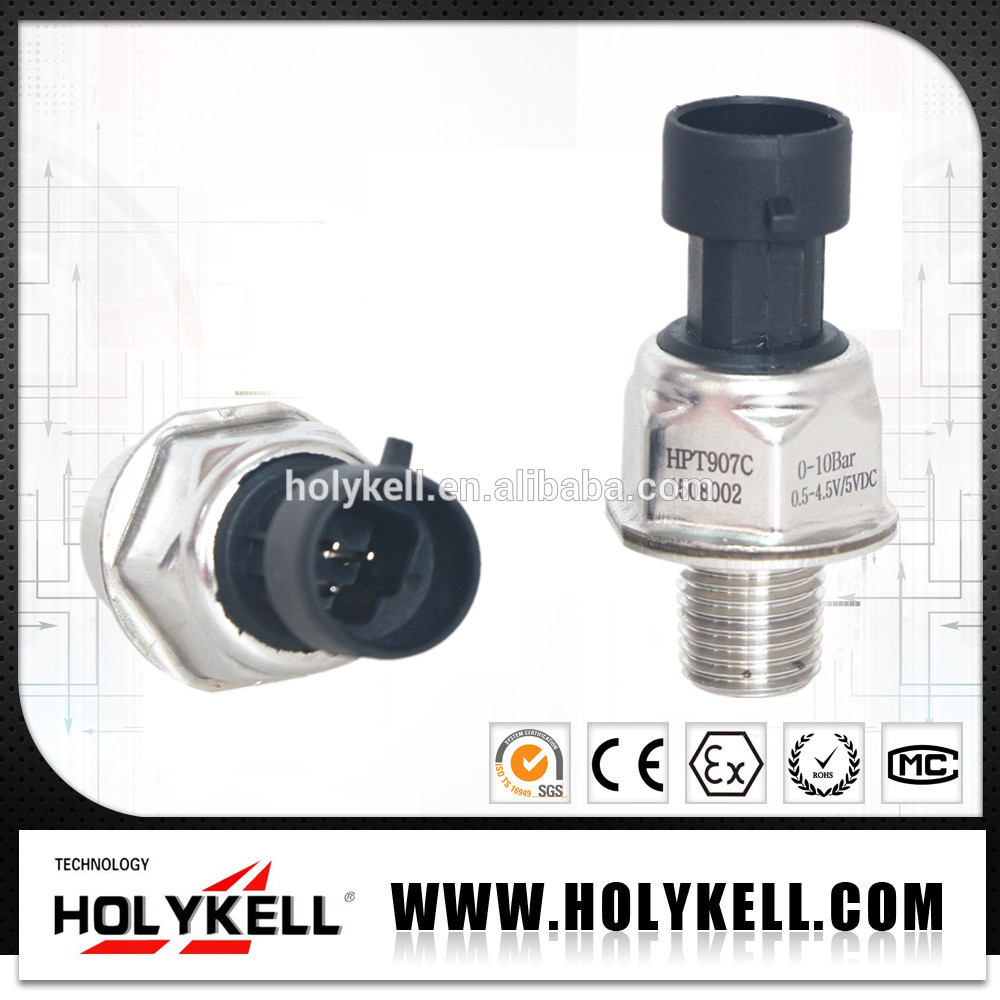

The HPT907 series is a new performance standard for low cost, high volume, commercial and industrial applications. the HPT907D is suitable for measurement of liquid or gas pressure. The unique design of the HPT907D pressure transducer utilizes the innovative digital compass and provides highly precise and reliability measurement. Combining the latest digital compensation and the professional sensor technology, this Pressure Sensor is suitable for measuring the pressure of non-corrosive gas and liquid. And the leak-proof devise in its construction can ensure its safety.
This pressure sensor has CE and ROSH license.
Specifications:
|
Model:
Parameter:
|
HPT907A/B/C/D
|
|
Pressure Range
|
0 ~2bar/5bar/8Bar/10Bar/12Bar/25Bar…
|
Other range 0~100bar……600Bar(price is higher)
|
|
Body materials:
|
Carbon steel alloy or Stainless steel
|
|
Overload
|
150%
|
|
Accuracy
|
≤±1.0%F.S.(Typical); ≤±1.5%F.S.(Typical)
|
|
Max Error:
|
± 1.5 %FS~±3%F.S. (including 0 ~ 90 ?/span> temperature error)
|
|
Working Temp
|
-30?/span>~105 ?/span>
|
|
Storage Temp
|
-40?/span>~85?/span>
|
|
Supply voltage
|
5.0 ± 0.5VDC; 24VDC, 12~36VDC.....
|
|
Output voltage
|
0.5 ~ 4.5VDC;4-20mA; 0-5V.....
|
|
Pressure cycle life
|
500,000
|
|
Protection
|
IP65
|
|
Pressure port
|
G1/4
|
G1/2
|
By customized (price is higher)
|
|
Measures media
|
Air, water, oil and other non-corrosive, non-solvent medium
|
|
Vibration
|
10Hz,3mm/ one hour
|
|
Certificate approving:
|
ROSH and CE Certificate.
|
|
Remarks:
|
Special applications request ,can custom by order
|
How to place order?
In order to recommend you the most suitable sensor , please show us following necessary info according to your practical situation.
1. what is your application ?
2. what purpose do you want to get ?
3.what is your medium ? and working temperature ?
4.what is your requirement on specifications as follow:
pressure range ?
threaded screw?
output signal?
Electronic connection ?
Whether need cable ?
Accuracy ?
5.feedback us above data and your order quantity.
