Quick Details

• Place of Origin:

  Jiangsu, China (Mainland)

• Packing:

  Roll or Single box packing as you required

• Delivery Port:

  shanghai

• OE Experience:

  No

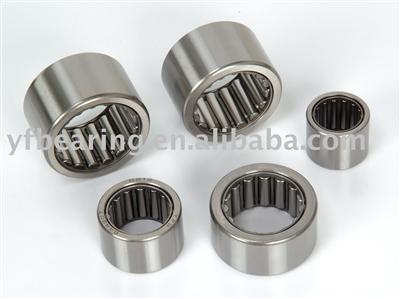

Product Name:BK2220-Drawn cup needle bearing

BK2220-Drawn cup needle bearing

Application

universal

Product Description:

Drawn cup needle bearing:
1.YFB bearing
2.ISO 9000/9001/9004/19011: 2000
3.Manufacturer price
4.High quality

Dimensions (metric)F22

Without Inner RaceD28B20Approx.
Wgt. lbs.090Appropriate Inner RaceIR-17x22x23InterchangeFAGBK 2220IKOTLAM 2220INABK 2220SKFBK 2220SKF (Old No.)RBNA 222820

?

Drawn cup needle bearing:

It is characterized by utilizing grinding axes as raceway with very small radial-space structure.

Types of Designs:

This kind of bearing has two types, one is punched-hole type, and the other sealed-hole type. Its suitable axial diameter is Φ6~Φ60mm. Multiple lip seal is available so as to prevent pollutant and water. It can be adopted for different occasions.

Product Precision Accuracy:

Mutual difference of needle rollers is 2μm, and the precision class is G2 (ISO GB309).

Thin-wall outer ring is affected by the accuracy of rigid bearing bracket.

It can also be defined according to the special requirements of customers.

Materials:

Material for needle roller is GCr15 bearing steel.

Material for cages and punched thin-wall outer ring can be quality low-carbon steel.

Special Directions:

?? ?Needle roller bearing with punched outer ring should be pressed into bearing bracket hole by assembling mandrel.

??? Assembling mandrel shoulder needs to contact with bearing sign-face.

??? Bearing cant be tilted during installation.

??? Limited by grease and sealing-element material, operation temperature is 300C---+1000C.

Changzhou Yunfan Bearing Co., Ltd. (YFB) is a professional needle bearing manufacturer. Our company is located in Wujin High-Tech Industrial Zone, Changzhou, Jiangsu, China.

YFB has a high talented team, topping production equipment and perfect inspection instruments. ...[Read More]

Company Profile:

• Main Product:

  (We Sell): Machined type needle bearings,yoke type track rollers,stud type track rollers,combined needle bearings,trust needle bearings,drawn cup needle bearings,needle & cage assemblies,inner rings,non-standard bearings,bearing,needle bearing

• Business Type:

  Manufacturer

• Current Export Market:

  North America, South America, Western Europe, Eastern Europe
