Quick Details

• Place of Origin:

  Jiangsu, China (Mainland)

• Packing:

  Single box packing as you required.

• Delivery Port:

  shanghai

• OE Experience:

  No

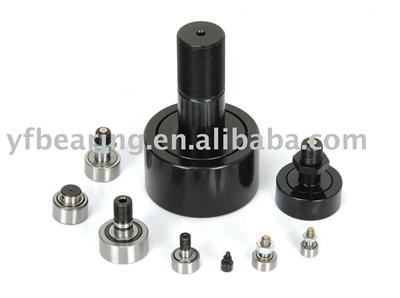

Product Name:KR26PP Stud Type Track Roller

KR26PP Stud Type Track Roller

Application

universal

Product Description:

Stud Type Track Roller:
1.YFB high quality
2.ISO 9000/9001/9004/19011: 2000
3.Short delivery time
4.Manufacturer price

Stud Type Track Roller:

1.With axial guidance, plastic axial plain washers on both sides
2.High rotating accuracy

 Old No.KR-26-PP

Crowned O.D. KR..Dimensions (metric)d10D26B12L36I23GM10x1Approx.
Wgt. lbs.130InterchangeFAGKR26C2RSFAG (Old No.)NAKD26IKOCF 10-1 UURMINAKR26PPMcGillMCFR-26 SSKFKR26PP 1) Sizes KR-16-2RS, KR-16-2RSX, KR-19-2RS and KR-19-2RSX can only be lubricated through roller end. Sizes KR-22-2RS, KR-22-2RSX, KR-26-2RS and KR-26-2RSX can only be lubricated through roller end or thread end.
2) Also available with Hex Sockets in roller end. Use suffix "SK". Example: KR-32-2RS SK. Consult factory for availability.

Types of Designs:
Supporting structure of needle rollers or cylindrical rollers is adopted for this kind of bearing. There are multiple types of sealing for preventing pollutant or water intrusion, various profile forms such as cylindrical & arc for the outer circle of outer race, bolt shaft structure which is convenient for direct installation and suitable to different occasions. Special structure can be designed as well according to the requirements of customers.

Product Precision Accuracy:
Dimensional tolerance and geometrical accuracy is based on GB/T6445.
Mutual difference of needle roller diameter is 2μm, and the precision grade is G2 (ISO GB309).
Bearing radial running clearance conforms to the value defined by 0 group of GB/T4604.
Diameter tolerance of outer-race arc is 0~0.05mm.
For fuller information on the special requirements of bearing running clearance, inscribed circle and accuracy grade, please contact this company.

Materials:
Material for needle roller is GCr15 bearing steel, quench-hardening HRC60---65.
Material for inner and outer races is GCr15 bearing steel or carburizing steel.
Material for cages is quality low-carbon steel or reinforced nylon.

Special Directions:
Outer race surface of supporting roller is arc form so as to avoid rim stress.
Limited by plastic cages (suffixed with TN) and sealing-element material, operating temperature is -300C---+1000C.

Outer race position is adjusted by eccentric sleeve structure so that it can match the motion rail.

For general-disposition design of bearings, refer to the relevant recommendation in the applied technology of rolling bearings.

Changzhou Yunfan Bearing Co., Ltd. (YFB) is a professional needle bearing manufacturer. Our company is located in Wujin High-Tech Industrial Zone, Changzhou, Jiangsu, China.

YFB has a high talented team, topping production equipment and perfect inspection instruments. ...[Read More]
