Overview:

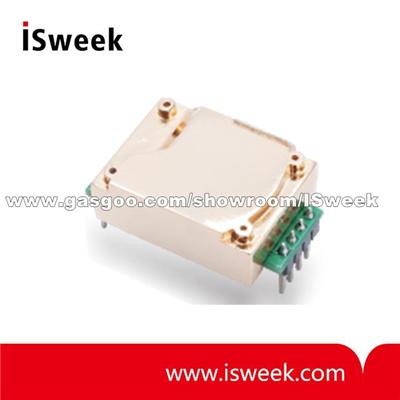

HT8101 is a digital carbon dioxide sensor based on non-dispersive infrared absorption (NDIR) method. Using non-dispersive infrared (NDIR) method to detects the presence of CO2 in the air, with good selectivity, no oxygen dependence, and long lifetime; Built-in temperature compensation; It also has serial port output, analog output and PWM output, very convenient to use. The sensor is a high-quality sensor combining mature infrared absorption gas detection technology with precise optical circuit design and sophisticated circuit design.
Features:
Model No. | HT8101 |
Detected gas | Carbon dioxide (CO2) |
Detected range | 400~5000ppm |
Accuracy | ±(50ppm+5% reading value) |
Power-on stable time | 120s |
Operating environment | -10~60; 0~95%RH (Non-condensing) |
Storage environment | -20~60; Below 0~95%RH(Non-condensing) |
Supply voltage | 4.5~5.5V DC |
Average operating current | 20mA |
Peak current | 110mA |
Output protocol |
UART_TTL(3.3V) Analog output (DAC) (default 0.4~2V) (0~3V range configurable) |
Preheat time | 3min |
Respond time | T90<30s |
Lifetime | 5years |
