Quick Details

• Supply Ability:

  100000 Piece/Pieces per Month

• Delivery Details:

  1-4 weeks

• Packing:

  Cartons

• Delivery Port:

  Shenzhen port

• OE Experience:

  No

Product Name:3Bar air intake pressure sensor for GM 12223851

3Bar air intake pressure sensor for GM 12223851

Application

all

Product Description:

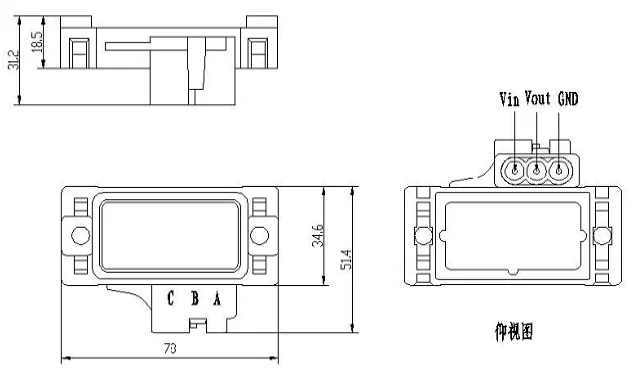

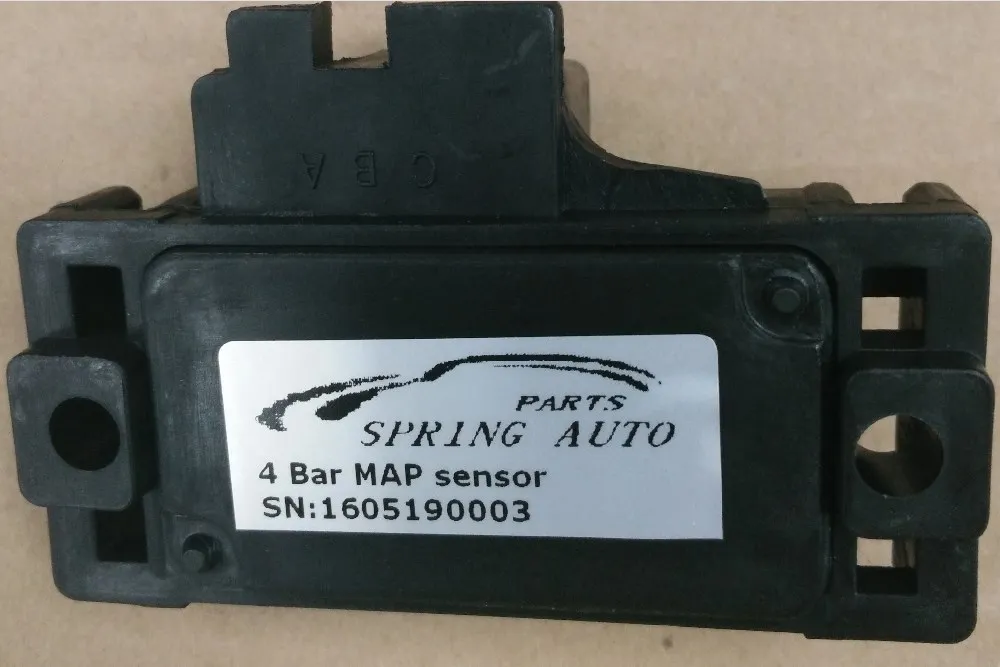

Model 615: Air Manifold Absolute Pressure Sensor

Electrical

Supply Voltage                     5.0±0.5 VDC

Supply Current                     10 mA max

Maximum Output Current             Sink    1 mA

Source   0.1 mA

Output Impedance                   10 ohms max

Output Type                        ratiometric

Output Voltage                       0.25 to 4.75 VDC

Sensor Operating Characteristics:

Range                              0bar to 1.0 bar

                                       0bar to 2.0 bar

                                       0bar to 3.0 bar

                                       0bar to 4.0bar

Proof Pressure                        200%FS

Static Accuracy (%FS) 1         1% typ.

Environmental Effects:

Compensated Temperature Range           -40 to +135

Storage Temperature Range                    -50 to +165

Mechanical:

Media Compatibility             Media Compatible with Silicon

APPLICATION:

Pressure range 0-3Bar

GM                  12223861;080735-13218P
OPEL              1211230
RENAULT       7700267701
HELLA             6PP 009 400-131

 SAAB             16172899;1537803A

Joint Sensor Instruments (Shenzhen) Ltd. is a subsidiary of Kogean which was established in 1995. Our company specializes in developing, manufacturing and selling a wide range of pressure sensors, piezoresistive pressure transducers, transmitters, foil ga[Read More]
