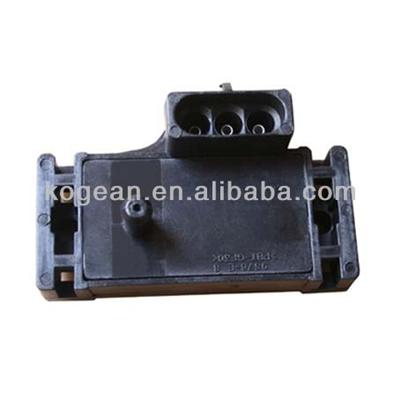

Model 615: Manifold Absolute Pressure Sensor(MAP)
2 bar map sensor
Electrical
Supply Voltage 5.0±0.5 VDC
Supply Current 10 mA max
Maximum Output Current Sink 1 mA
Source 0.1 mA
Output Impedance 10 ohms max
Output Type ratiometric
Output Voltage 0.25 to 4.75 VDC
Sensor Operating Characteristics:
Range 0.2 ba r to 1.0 bar
0.2 ba r to 2.0 bar
0.2 ba r to 3.0 bar
Proof Pressure 200%FS
Static Accuracy (%FS) 1 1% typ.
Environmental Effects:
Compensated Temperature Range -40 to +135
Storage Temperature Range -50 to +165
Mechanical:
Media Compatibility Media Compatible with Silicon
APPLICATION(OE):
Pressure range 100KPA
GM 16254719, 16175339
Delphi 12247561
NISSAN 2508500QAA
OPEL 4409668
RENAULT 7700101762,8200105165,8200121800
FACET 10.3023
HELLA 6PP 009 400-131
Pressure range 105KPA
OPEL 12 11 230
FACET 10.3007
Pressure range 2 bar
GM 16040609
OPEL 1238572,1238786
RENAULT 7700267701
VOLVO 1336384
FACET 10.3004
Genuine Delphi 12247571
Pressure range 300KPA
GENERAL 16172899, 16040749
Delphi 12223861
MOTORS 9132374
