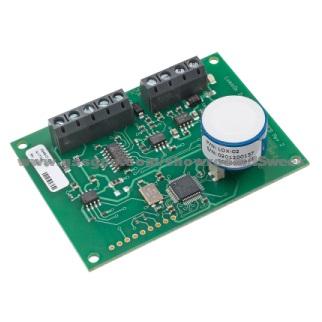

Image for LOX-EVB LuminOx Optical Oxygen Sensor Evaluation Interface Board

LOX-EVB LuminOx Optical Oxygen Sensor Evaluation Interface Board

Application: other
Market Type:After Market
FOB Price: Inquiry For It?
Payment Terms: T/T, PayPal
Minimum Order: 1Piece/Pieces

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

Place of Origin:
United Kingdom
Delivery Time:
5~7 Work Days
Delivery Port:
HK
Max. Production Capacity:
3000 Pcs/Month
OE Experience:
No

Product Name:LOX-EVB LuminOx Optical Oxygen Sensor Evaluation Interface Board

LOX-EVB LuminOx Optical Oxygen Sensor Evaluation Interface Board

Application

other

Product Description:

LuminOx Optical Oxygen Sensor Evaluation Interface Board LOX-EVB GENERAL DESCRIPTION

The LuminOx Sensor family is a range of factory calibrated oxygen sensors which measure ambient ppO levels using the principle of fluorescence quenching by oxygen.
The LuminOx Evaluation interface Board has been designed to allow customers to quickly and easily evaluate the sensor with the minimum of effort or design work
The LuminOx Evaluation Kit simultaneously provides three outputs;
RS232 (serial interface voltage levels)
RS485 (Modbus RTU) port allows multiple sensors to be addressed on a bus
0-5V Analogue output for basic measurements of oxygen only

LuminOx Optical Oxygen Sensor Evaluation Interface Board LOX-EVB BENEFITS
Converts the LuminOx TTL level
RS232 output into 3 standard industrial outputs
Auto detects ppO2 or O2% variants of LuminOx Sensor.

LuminOx Optical Oxygen Sensor Evaluation Interface Board LOX-EVB APPLICATIONS
Oxygen Detection
Portable Equipment
Breathing Apparatus
Inerting
Medical
Lab Equipment
Agriculture
Incubation
Fire Prevention
Flue Gas in Condensing Boilers

LuminOx Optical Oxygen Sensor Evaluation Interface Board LOX-EVB ELECTRICAL AND ENVIRONMENTAL SPECIFICATION

Supply Voltage (Vs)	4.75-5.25 Vdc
Supply Current (Is)	<50mA
Output Types	RS232, RS485 and 0-5V
Operating Temperature	0°C to +50°C
Storage Temperature	0°C to +60°C

LuminOx Optical Oxygen Sensor Evaluation Interface Board LOX-EVB PERFORMANCE SPECIFICATION

LuminOx Sensor Compatibilit	0-25% (O2 % version) 0-300mbar (ppO2 version)
Resolution	0.01% / 0.1mbar (Digital Outputs) 0.01V (0-5V Analogue Output)

LuminOx Optical Oxygen Sensor Evaluation Interface Board LOX-EVB MECHANICAL

Connection	9 Screw terminals
PCB Dimensions	75x55mm max

The LuminOx range has been designed as an alternative to electrochemical sensors but with the benefits of RoHS compliance, long life and complete environmental compensation built-in.

The sensor is available with and without a built-in barometric pressure sensor. LuminOxs native measurement is partial oxygen p ressure (ppO2) in mbar. By incorporating a barometric pressure sensor, LuminOx is able to measure O2 vol. % in addition to ppO2

Unlike electrochemical sensors, LuminOx requires no additional signal conditioning circuitry and connects directly to the customers microcontroller via 3.3V-level RS232 link. This reduces costs and simplifies system design.
