Quick Details

• absolute pressure range:

  10 - 1100 mbar

• Supply voltage:

  2.2 V to 3.6 V

• Delivery Time:

  5~7 Work Days

• Max. Production Capacity:

  3000 Pcs/Month

• OE Experience:

  No

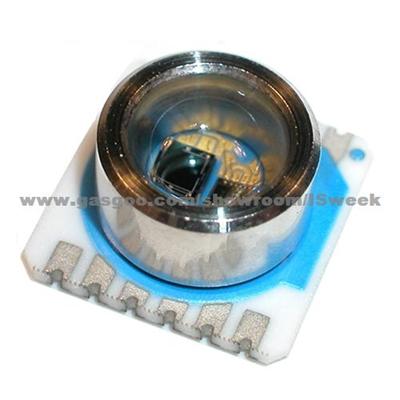

Product Name:MS5534C Integrated Miniature Pressure Sensor 9 X 9 Mm

MS5534C Integrated Miniature Pressure Sensor 9 X 9 Mm

Application

other

Product Description:

MS5534C
Barometer Module

SPECIFICATIONS
10 - 1100 mbar absolute pressure range
6 coefficients for software compensation stored on-chip
Piezoresistive silicon micromachined sensor
Integrated miniature pressure sensor 9 x 9 mm
16 Bit ADC
3-wire serial interface
1 system clock line (32.768 kHz)
Low voltage and low power consumption

Description:

The MS5534C is a SMD-hybrid device including a piezoresistive pressure sensor and an ADC-Interface IC. It provides a 16-bit data word from a pressure and temperature dependent voltage. Additionally the module contains 6 readable coefficients for a highly accurate software calibration of the sensor. MS5534C is a low power, low voltage device with automatic power down (ON/OFF) switching. A 3-wire interface is used for all communications with a microcontroller.

The MS5534C is fully software compatible to the previous versions (MS5534A and MS5534B). Compared to the previous versions, the ESD sensitivity level has been improved to 4kV on all pins.

Features:
Supply voltage 2.2 V to 3.6 V
Low supply current
-40°C to +125°C operation temperature
No external components required

Applications:

 Mobile altimeter/barometer systems

 Weather control systems

 Adventure or multi-mode watches

 GPS receivers
