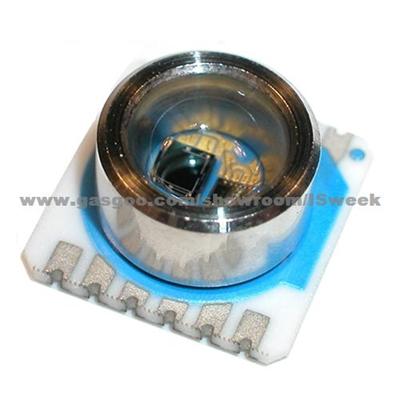

Product Name:MS5535C 14 Bar Pressure Sensor Module

MS5535C 14 Bar Pressure Sensor Module

Application

other

Product Description:

Description:

The MS5535C is a SMD-hybrid device including a piezoresistive pressure sensor and an ADC-Interface IC. It provides a 16-bit data word from a pressure and temperature dependent voltage. Additionally the module contains 6 readable coefficients for a highly accurate software calibration of the sensor. MS5535C is a low power, low voltage device with automatic power down (ON/OFF) switching. A 3-wire interface is used for all communications with a microcontroller.

The MS5535C is fully software compatible to the previous versions (MS5535A and MS5535B). Compared to the previous versions, the ESD sensitivity has been improved to 4kV on all pins.

Features:
Integrated pressure sensor (9x9 mm)
Pressure range 0-14 bar (200 PSI)
16 Bit ADC
6 coefficients for a software compensation stored on-chip
3-wire serial interface
1 system clock line (32.768 kHz)
Temperature range -40..+125°C
Low voltage (2.2 to 3.6V)
Low power (Standby current: 0.1uA)
Pb-free and RoHS-compatible
Soldering profile: 240-250°C
Low supply current
No external components required

Application:
Mobile water depth measurement systems
Diving computers and divers watches
