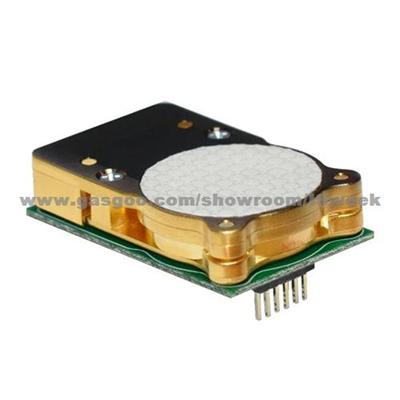

COZIR LP
Low Power, Low Profile Carbon Dioxide Sensor
COZIR LP is a low profile, low power, high performance CO2 sensor. Operating at a 2Hz update rate while only consuming 3mW5 , its world leading power consumption make it ideally suited for battery operation and portable instruments. Based on proven GSS IR LED and Detector technology and innovative optical designs. COZIR LP is a third generation product from Gas Sensing Solutions Ltd - leaders in IR LED CO2 sensing.
With measurement ranges of 0-2000ppm, 0-5000ppm and 0-1% the COZIR LP Sensor is suitable for applications such as Building Control and Indoor Air Quality.
·Ultra-low Power 3mW
·Measurement ranges from 0 to 1%
·3.3V supply
·Peak current only 33mA
·Commands set and electrical interface compatible with GSS COZIR sensor range
Specifications
General Performance
Start up time First: reading 1.2s after power on
Operating Conditions: 0°C to 50°C (Standard)
-25°C to 55°C (Extended range)
0 to 95% RH, non-condensing
Recommended Storage: -30°C to +70°C
CO2 Measurement
Sensing Method: Non-dispersive infrared (NDIR) absorption
Patented Gold-plated optics
Proprietary GSS Solid-state source and detector
Sample Method: Diffusion
Measurement Range: 0-2000ppm, 0-5000ppm, 0-1%
Accuracy: ±50 ppm +/- 3% of reading
Calibration: Autocalibration
Non Linearity: < 1% of FS
Pressure Dependence: 0.13% of reading per mm Hg in normal atmospheric conditions.
Operating Pressure Range: 950 mbar to 1050 mbar
Response Time: 2 - 3 mins (Configurable via filter type and application)
Reading refreshed twice per second.
