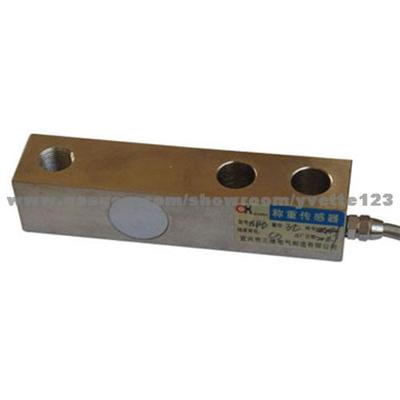

Image for Load Cell For Electronic Flat Platform Scale

Load Cell For Electronic Flat Platform Scale

Typical Clients: Yixing
Market Type:OE Market
Price: Inquiry For It?
Payment Terms: L/C, T/T

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

Input Voltage:
v
Pressure:
KPa

Available Capacity:
0.1-10t

Product Name:Load Cell For Electronic Flat Platform Scale

Load Cell For Electronic Flat Platform Scale

Product Description:

1.Shear beam load cell ,one end fixed ,diverse loading and good seal structure
2. Self-centering ,simple to install ,easy to use good interchangeability
3.Suitable for various ultrathin electronic truck scale , one-track crane scale ,hopper scale ,etc.

EmaxMax. capacity	t	0.1~10
Sensitivity	mV/V	2.0±0.002
Accuracy class		C2	C3
Maximum number of verification intervals	nmax	2000	3000
Minimum load cell verification interval	Vmin	Emax/2000	Emax/3000
Combined error	%F.S	±0.020	±0.016
Creep	%F.S/30min	±0.020	±0.016
Temperature effect on sensitivity	%F.S/10	±0.02	±0.017
Temperature effect on zero	%F.S/10	±0.02	±0.017
Zero balance	%F.S	±1.0
Input resistance		380±10
Output resistance		350±3
Service temperature range		-30...+70
Safe overload	%F.S	120
Ultimate overload	%F.S	200
Recommended excitation voltage	V	515
Insulation resistance	M/50V	5000
Protection class		IP67IP68
Load cell material		Alloy steel
Cable length	m	3(0.1~2t)/5(3~10t)
Cable outer caliber	mm	5
