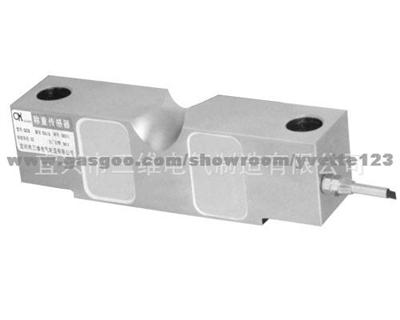

Image for Bridge Type Double Shear Beam Load Cell

Bridge Type Double Shear Beam Load Cell

Typical Clients: Turkey
Market Type:OE Market
Price: Inquiry For It?
Payment Terms: L/C, T/T

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

Input Voltage:
v
Pressure:
KPa

Available Capacity:
10-200klb

Product Name:Bridge Type Double Shear Beam Load Cell

Bridge Type Double Shear Beam Load Cell

Product Description:

1. Bridge type double shear beam , unique floating bearing structure
2. Self-resetting , good side force resistance and shock resistance
3. Moistureproof sealed,ideal for hostile environment
4.Simple to install,easy to use,good interchangeability
5.Suitable for electronic truck scale,railroad scale,hopper scale and various special scales.

EmaxMax. capacity	klb	10~200
Sensitivity	mV/V	3.0±0.002
Accuracy class		C2	C3
Maximum number of verification intervals	nmax	2000	3000
Minimum load cell verification interval	Vmin	Emax/5000	Emax/10000
Combined error	%F.S	±0.030	±0.020
Creep	%F.S/30min	±0.024	±0.016
Temperature effect on sensitivity	%F.S/10	±0.017	±0.011
Temperature effect on zero	%F.S/10	±0.023	±0.015
Zero balance	%F.S	±1.0
Input resistance		750±10
Output resistance		703±5
Service temperature range		-30...+70
Safe overload	%F.S	150
Ultimate overload	%F.S	250
Recommended excitation voltage	V	515
Insulation resistance	M/50V	5000
Protection class		IP67IP68
Load cell material		Alloy steel
Cable length	m	10m1040klb 12m50~200klb
Cable outer caliber	mm	5
