Quick Details

• Size:

  26*75mm

• Weight:

  20g

• Voltage:

  100v

• Type:

  Level

• Place of Origin:

  Guangdong, China (Mainland)

• Delivery Time:

  0

• Packing:

  Inner Packing: 100pcs/plastic bagMaster Packing: 500pcs/carton

• Delivery Port:

  SHENZHEN

• OE Experience:

  No

Product Name:Water Tank Level Sensor

Water Tank Level Sensor

Application

auto

Product Description:

1.Material: PP
2.Size: D26xH75mm
3.Weight:20g/pc
4.Max Contact Rating:10W
5.RoHS compliant.

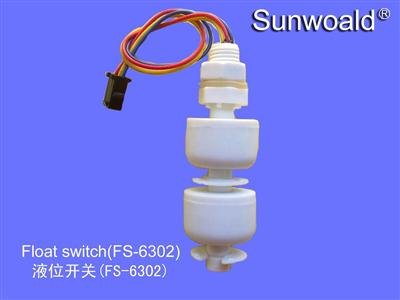

FS-6302 Water Tank Level Sensor

                Float Sensor

                PP Float Switch

Switch characteristic:

    Contact form: A

    Max Contact rating: 10W

    Max switch voltage: 100V

    Max switch current:  0.5A

    Max contact resistance:  100m Ohm

    Min insulation resistance:  100M Ohm

    Electrical Life: 1x107  (5Vdc, 10mA)

Physical characteristic:

    Min shock:  30G

    Min vibration:  30G(10~50Hz)

    Temp. rating:  -10~+60°C

    Heat Shock: -20~+70°C

 Widely applies in the water dispenser.
