Quick Details

• Size:

  41*47*31mm

• Weight:

  17g

• Voltage:

  100v

• Type:

  Level

• Place of Origin:

  Guangdong, China (Mainland)

• Delivery Time:

  0

• Packing:

  Inner Packing: 100pcs/plastic bag, Master Packing: 500pcs/carton

• Delivery Port:

  SHENZHEN

• OE Experience:

  No

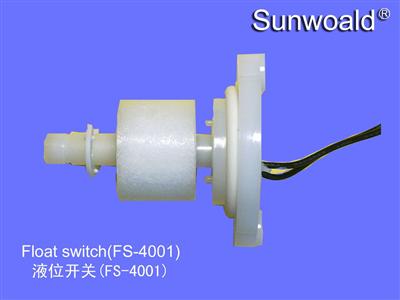

Product Name:Water Tank Level Sensor/ Magnetic Float Switc/ Magnetic Float Sensor

Water Tank Level Sensor/ Magnetic Float Switc/ Magnetic Float Sensor

Application

Auto

Product Description:

1.RoHS compliant.
2.Acid-resistant.&Alkaline resisting.
3.Material:PP
4.Size:W41xH47xD31mm
5.Weight:17g/pc

FS-4001 Water Tank Level Sensor

                Magnetic Float Switc

                Magnetic Float Sensor

Switch Characteristic: Contact form: AMax Contact Rating: 10W/70WMax Switch Voltage: 100V/300VMax Switch Current: 0.5A/1.0AMax Contact Resistance: 100m ohmMin Insulation Resistance: 100M ohmElectrical Life: 1x107  (5Vdc, 10mA)

Physical Characteristic:Min Shock: 30GMin Vibration: 30G(10~50Hz)Temp. Rating: -10~+60°C    Heat Shock: -20~+70°C
